Every large Digital Transformation or Product Development effort eventually runs into some sort of complexity. Dependencies between teams, tasks, systems, and data build up until the project becomes impossible to manage by instinct or Excel alone. This is where the Design Structure Matrix (DSM) model steps in. A powerful visualization and sequencing framework, DSM enables organizations to detect, analyze, and control interdependencies before they spiral into chaos. Whether the objective is accelerating Innovation, managing risk, or structuring execution, DSM lays out a strong foundation.
DSM was first introduced in the early 1980s by Professor Donald Steward and has since evolved into a versatile systems-thinking template. At its core, DSM maps how elements in a system—e.g., components, teams, or activities—depend on each other. It converts ambiguity into structure. In a world obsessed with agility, DSM delivers precision.
Modern use cases show DSM in action across sectors. Consider software modernization. Legacy monoliths contain hidden dependency loops that cause failure during migration. A DSM, applied to software modules, reveals which subsystems can safely migrate and which must be tackled as a single cluster. Or in Pharmaceuticals, where handoffs between research, regulatory, and Manufacturing teams are complex, DSM maps these flows, surfacing bottlenecks and feedback loops that extend time to market.
DSM Structure & Types

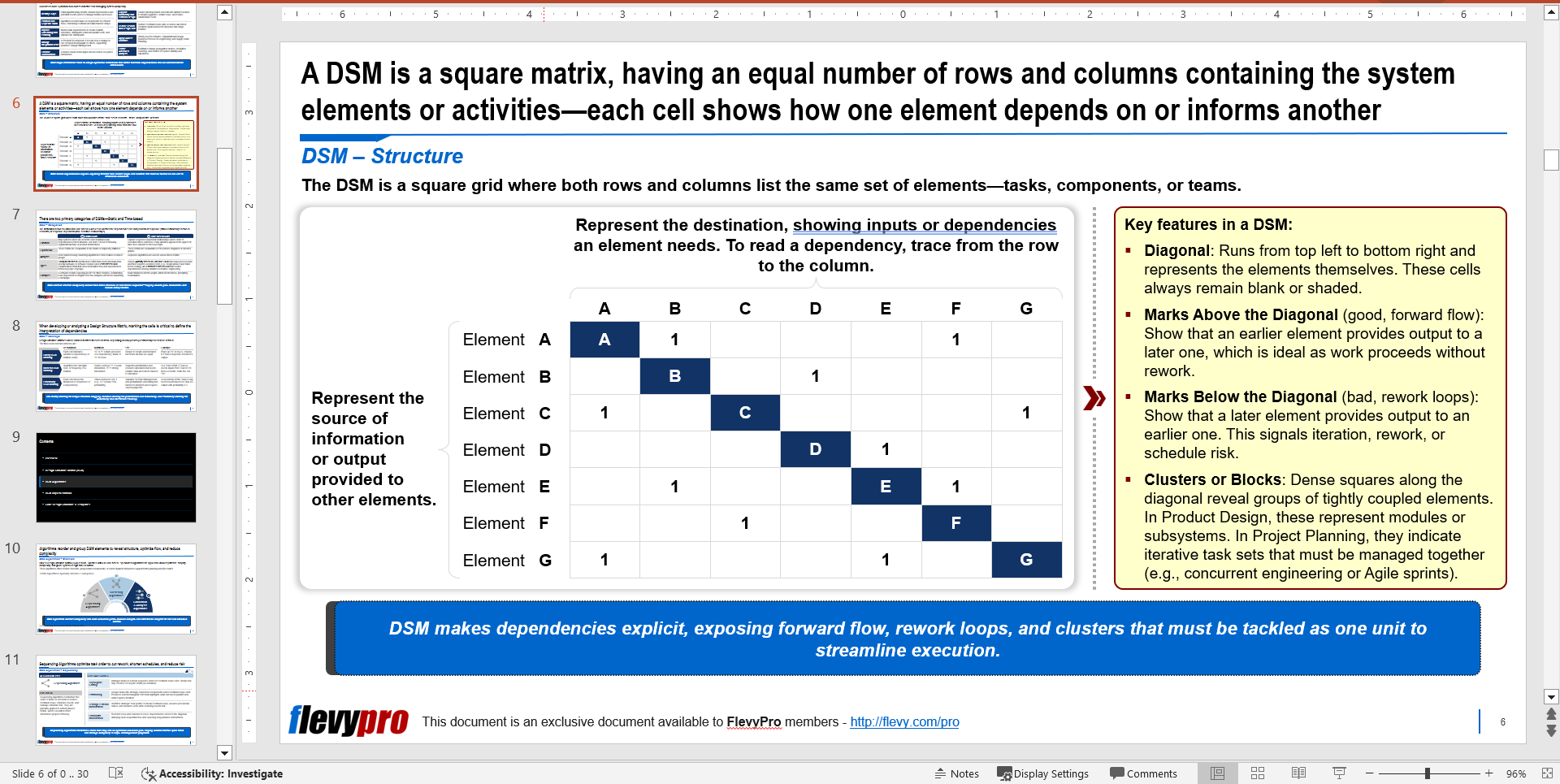

DSM is a square grid where both rows and columns represent the same set of elements—teams, tasks, or system components. Each cell shows whether one element depends on another. Dependencies marked above the diagonal are good—they reflect forward flow. Marks below the diagonal flag rework and iteration. This simple visual rule enables leaders to immediately spot structural risks.
DSMs have 2 main types:
Static DSMs – Used to model systems where all elements exist at once. Ideal for product architecture, team structure, and enterprise systems.
Time-based DSMs – Used to plan execution where sequencing matters. Useful in project scheduling, iterative engineering, or Process Design.
DSM Markings are layers of detail that allow DSMs to scale from simple project reviews to full-scale simulations. DSM markings range from simple binary (dependency present or not), to numeric (strength of dependency), to probability-based (likelihood of rework).
DSMs are based on several powerful algorithms:
Sequencing Algorithms – Restructure tasks to minimize rework and optimize execution order.
Simulation Algorithms – Model uncertainty, change impact, and iterative cycles to support risk-aware planning.
Significance of DSM in Strategy and Execution
DSM is one of the few Strategy Execution tools that directly links architecture to action. It shines where conventional tools fail due to complex, multi-variable programs with unclear interfaces. In Strategic Planning or Change Management, leaders often underestimate how much time and cost are buried in hidden dependencies. DSM exposes them.
In Product Development, a common failure mode is iteration caused by misaligned inputs. A DSM reveals where inputs arrive late or from unstable sources. Teams can then re-sequence the work or introduce provisional assumptions to keep moving. This preemptive structuring of execution delivers speed without sacrificing quality.
DSM is also a powerful tool in Organizational Design. By mapping how teams exchange information, leaders can redesign organization charts that match actual workflows—not outdated silos. It helps detect overloaded hubs, risky handoffs, and unnecessary loops that slow execution and create confusion.
DSM supports Digital Transformation by enabling modular system upgrades, phased deployments, and smooth platform integration. It supports Strategic Sourcing by clarifying whether a component should be outsourced or kept in-house based on its dependency footprint.
DSM is not a diagramming tool. It is a diagnostic engine. It tells you where things are tangled, where they are brittle, and how to fix them. It brings visibility to the unspoken architecture of your organization’s execution model.
Let’s take a closer look at the 2 core types of DSMs.
Static DSMs
Static DSMs model structure without reference to time. They are perfect for architecture mapping. For example, in hardware or software systems, they can show which components are highly coupled and must evolve together. In teams, they reveal information flow—who depends on whom, and how often. This is crucial in Organizational Realignment. You cannot redesign a function unless you understand how work flows across it.
These matrices benefit most from Clustering Algorithms. By grouping tightly connected items, leaders can isolate modules, define interface contracts, and reduce coordination costs.
Time-based DSMs
Time-based DSMs model tasks where order matters. This is the domain of Project Planning and Process Design. These matrices help spot feedback loops—situations where a task depends on the outcome of something that happens later. These loops create rework. DSM helps break or manage them through Tearing Techniques, which allow provisional assumptions to stand in until final data arrives.
Time-based DSMs are fed into Sequencing Algorithms that restructure work for faster throughput and fewer surprises. They help distinguish which tasks can run in parallel and which must be sequenced.
Case Study
Aerospace programs are notorious for delays caused by last-minute interface surprises. DSM flips the paradigm. Instead of designing components in isolation, teams use DSM to visualize how propulsion, navigation, payload, and control systems interact from day one.
For example, changes in one subsystem’s weight can affect propulsion requirements, which in turn impact fuel load and storage design. A Parameter-based DSM exposes these loops early, enabling coordinated design adjustments before they become blockers.
Feedback Minimization Algorithms help break loops strategically, allowing parallel development without increasing integration risk. DSM simulation tools can then predict ripple effects of late-stage changes, helping leaders avoid surprises just before launch. DSM’s application here ensures that integration is not treated as an event, but as a continuously managed process.
FAQs
What is the first step in applying DSM?
Start by identifying the system’s key elements (tasks, teams, or components) and mapping how they interact. Begin with a binary DSM to build the structure, then refine using numeric or probability markings as needed.
How do I know whether to use a Static or Time-based DSM?
Use a Static DSM when modeling systems that exist simultaneously, such as product architectures or organizational charts. Use a Time-based DSM when sequencing and iteration are critical, such as in engineering workflows or Transformation roadmaps.
Can DSM be used for Software Architecture analysis?
Yes. DSM is widely used to analyze software systems, particularly to identify and reduce dependency cycles before migrating to modular or cloud-based architectures.
What tools are available to create DSMs?
Options range from Excel-based tools for quick modeling to advanced platforms like Lattix, Flow, or Acclaro DFSS for enterprise-level dependency management. Choose based on the complexity of your system and the fidelity required.
How does DSM reduce rework in large projects?
DSM highlights feedback loops and dependency risks that cause rework. Sequencing Algorithms then restructure the plan to minimize these risks, enabling cleaner execution with fewer costly iterations.
Closing Thoughts
Complexity is the default state of any large initiative. What matters is how Leadership structures that complexity into something manageable. DSM provides a template for doing that by revealing its true structure.
DSM brings clarity. It makes the hidden architecture of execution visible. It does not rely on guesswork or gut feel. It translates interdependency into a grid, loops into data, and risk into action.
In a world where execution speed is often a differentiator, DSM gives organizations a way to move fast without breaking things. It offers rigor without rigidity. Once mastered, it becomes a foundational capability. The organizations that thrive are not necessarily the fastest or the biggest, they are the ones who can see complexity coming and are ready for it. DSM gets them there.
