Quality Correlation and Scatter Analysis Tool   Excel template (XLSX)
$30.00

Quality Correlation and Scatter Analysis Tool (Excel template (XLSX)) Preview Image
Quality Correlation and Scatter Analysis Tool (Excel template (XLSX)) Preview Image
Flevy is the marketplace for business best practices.
Quality Correlation and Scatter Analysis Tool (Excel template (XLSX)) Preview Image
Quality Correlation and Scatter Analysis Tool (Excel template (XLSX)) Preview Image
Arrow   Click main image to view in full screen.

Quality Correlation and Scatter Analysis Tool – Excel XLSX

Excel (XLSX)

$30.00

Add to Cart



Immediate download
Fully editable Excel
Free lifetime updates

BENEFITS OF THIS DOWNLOADABLE EXCEL DOCUMENT

  1. Records sequential production batches and cross-functional process variables within a structured data entry log.
  2. Calculates linear regression parameters including correlation coefficient r and coefficient of determination R² automatically.

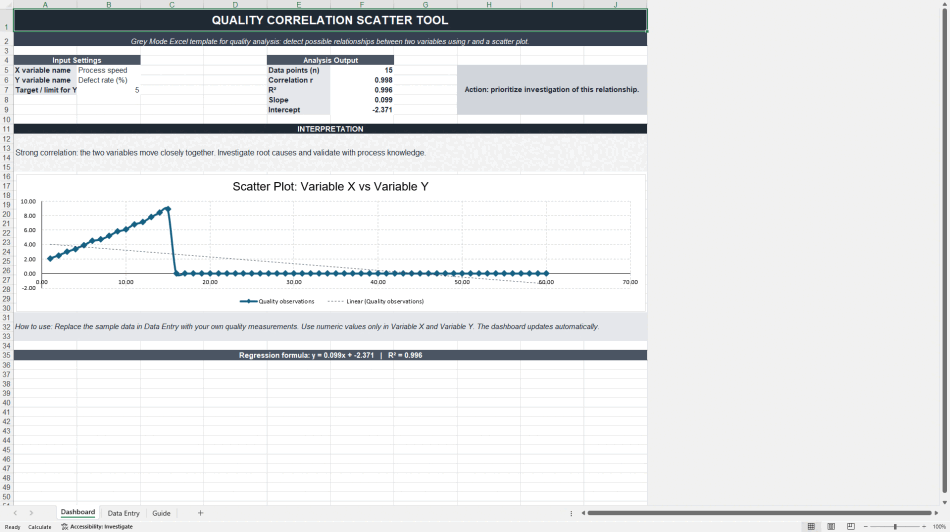

  3. Visualizes statistical dependencies and process limitations using an integrated executive scatter plot in gray mode.

QUALITY MANAGEMENT EXCEL DESCRIPTION

Quality Correlation and Scatter Analysis Tool is an Excel template (XLSX) available for immediate download upon purchase.

Identifying hidden statistical dependencies between process variables and isolating the root causes of systemic product defects requires a highly reliable, analytical modeling framework. Across continuous manufacturing plants, chemical processing operations, and high-volume assembly lines, engineering teams frequently witness fluctuating reject rates or sudden performance drops without understanding the exact operational parameters driving those shifts. Without an integrated, data-driven regression architecture to map variable pairs—such as machine speed versus defect frequency, temperature versus component scrap, or humidity versus processing time—quality assurance teams face repetitive manufacturing loops, high raw material waste, and prolonged problem-solving timelines.

The Quality Correlation and Scatter Analysis Tool is an institutional-grade operational excellence workbook and statistical process control (SPC) matrix engineered specifically for Lean Six Sigma Practitioners, Quality Engineers, Plant Managers, and Operational Consultants. Built directly upon advanced statistical analysis principles, this interactive model establishes a streamlined sandbox to archive batch lot data, evaluate cross-functional process variables, and automatically generate regression profiles. By linking historical production records directly with boardroom-ready scatter visualizations, this spreadsheet delivers immediate data clarity.

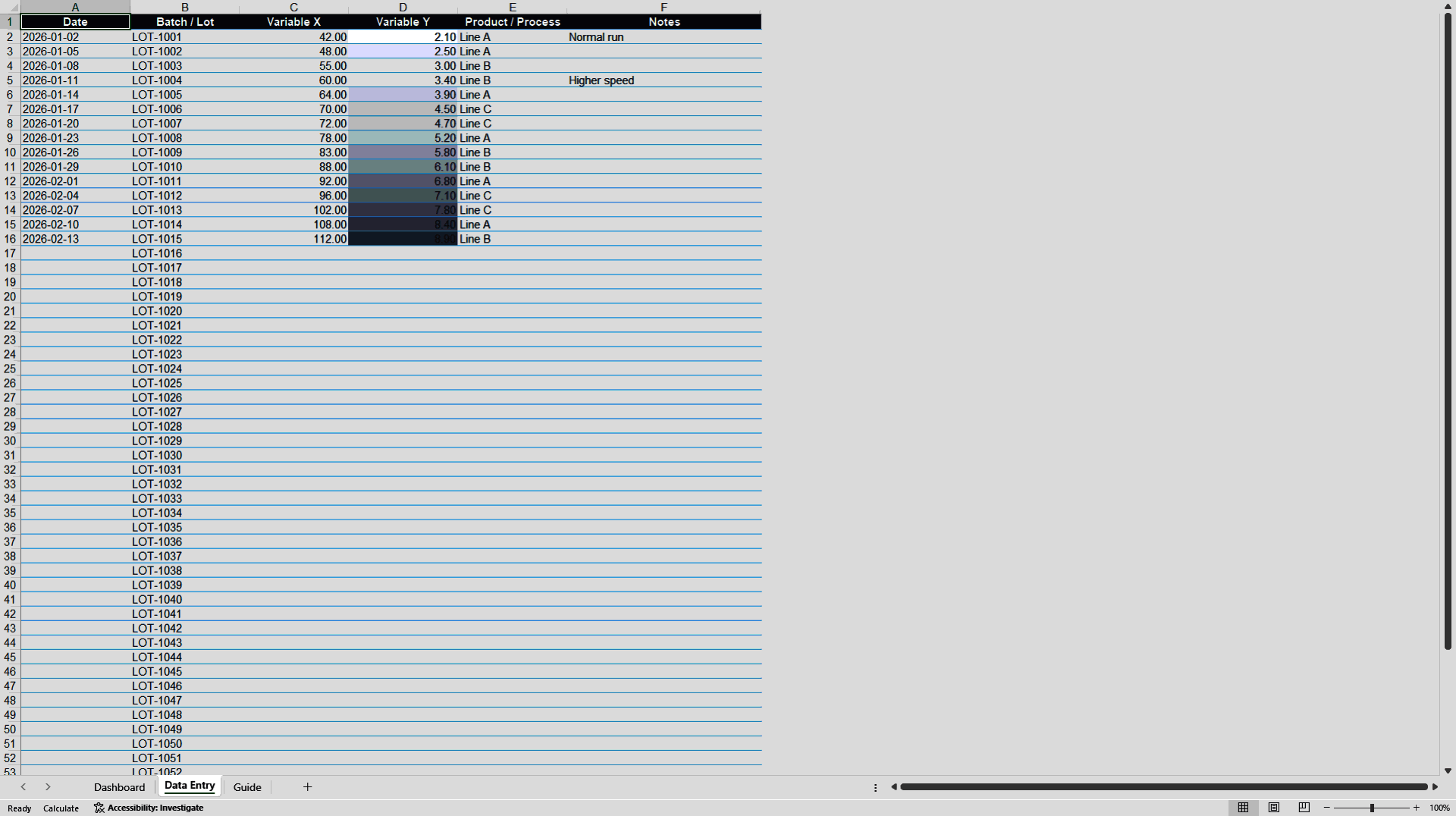

The underlying functional architecture coordinates information across three dedicated workbooks designed for error-free data engineering. The pipeline begins with the Guide sheet, which provides clear deployment steps and ideal industrial use-case paradigms. Actual operational metrics are recorded on the Data Entry tab, where teams log consecutive tracking dates, specific production lot numbers, raw metric values for Variable X and Variable Y, active plant line markers, and field-level operational notes.

Got a question about the product? Email us at support@flevy.com or ask the author directly by using the "Ask the Author a Question" form. If you cannot view the preview above this document description, go here to view the large preview instead.

Source: Best Practices in Quality Management, Data Analysis Excel: Quality Correlation and Scatter Analysis Tool Excel (XLSX) Spreadsheet, supplychainexpert
