BENEFITS OF THIS DOWNLOADABLE EXCEL DOCUMENT
- Tracks Overall Equipment Effectiveness (OEE) alongside Availability, Performance, and Quality.
- Visualizes operational production losses and structural downtime trends on a weekly basis.
- Includes a built-in Formula Guide for standardized manufacturing KPI tracking.
OEE EXCEL DESCRIPTION
The OEE Production Dashboard & Loss Analyst is a professional Excel framework designed for plant managers, manufacturing engineers, and continuous improvement (Lean/Six Sigma) specialists. Maximizing machine utilization and identifying hidden floor losses is critical to maintaining a competitive edge in manufacturing. This tool simplifies the process by capturing raw production logs and converting them into actionable Overall Equipment Effectiveness (OEE) metrics.

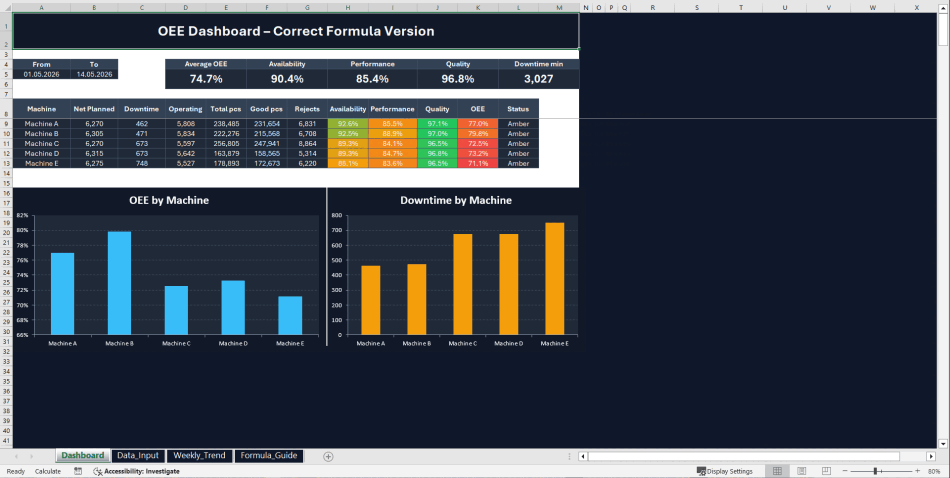

The integrated Executive Dashboard offers a real-time command center for production lines. It breaks down the classic three pillars of OEE—Availability, Performance, and Quality—making it simple to see exactly whether capacity is lost to unplanned downtime, minor stops, or quality scrap.
Key Features and Capabilities:

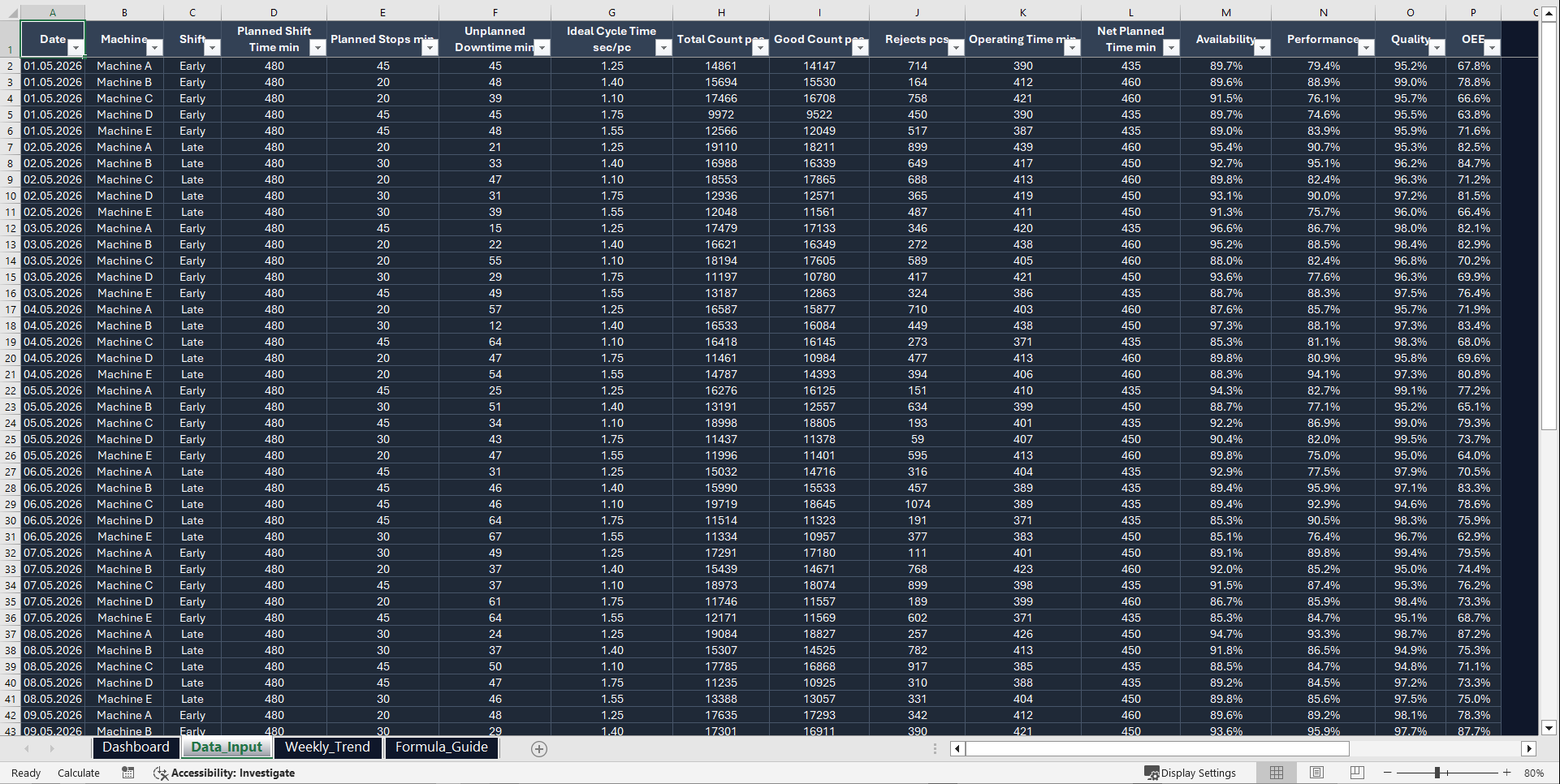

1. Granular Production Data Input: The structured "Data_Input" sheet captures shift-level parameters including planned shift times, planned breaks, unplanned breakdown minutes, target run rates, total units produced, and scrap quantities.

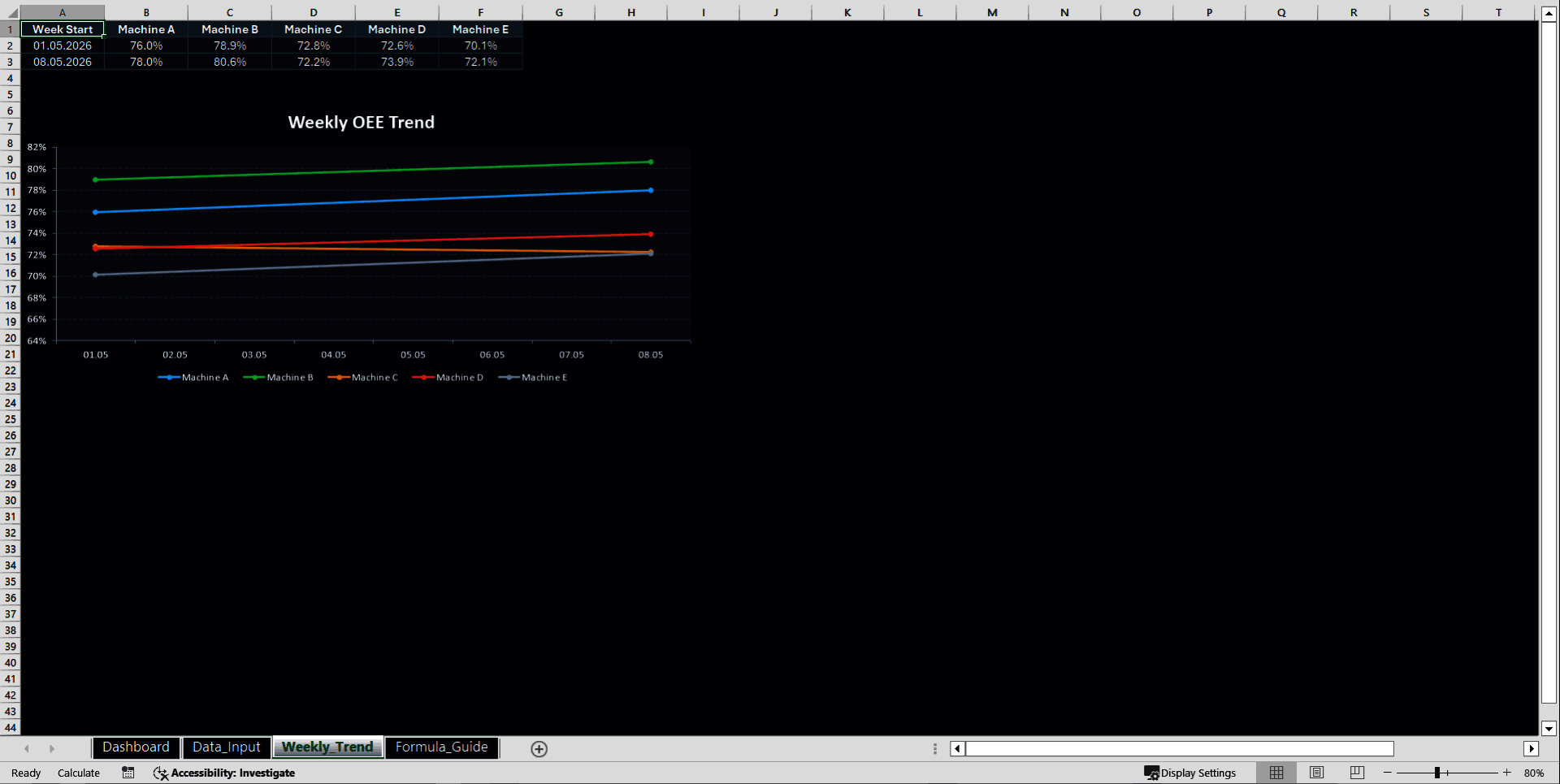

2. Automated Weekly Trend Analysis: The dedicated "Weekly_Trend" sheet compiles operational inputs automatically to plot structural performance improvements or declines over time, streamlining weekly operations reviews.
3. Educational Formula Guide: Features an explicit "Formula_Guide" tab that aligns team terminology and provides a transparent educational reference for standard OEE math.
4. 100% Formulas, Zero Macros: Built purely on robust, native Excel logic with no hidden VBA code or locked sheets. You retain total transparency and flexibility to scale the setup across additional machines or facilities.
Got a question about the product? Email us at support@flevy.com or ask the author directly by using the "Ask the Author a Question" form. If you cannot view the preview above this document description, go here to view the large preview instead.
Source: Best Practices in OEE Excel: OEE Production Dashboard & Loss Analyst Excel (XLSX) Spreadsheet, supplychainexpert
