Automated Value Stream Mapping Excel Tool – Excel XLSX

BENEFITS OF THIS DOWNLOADABLE EXCEL DOCUMENT

1. Generates dynamic Value Stream Maps instantly from tabular data inputs.
2. Calculates automated Lean KPIs including Lead Time and Process Efficiency.
3. Eliminates manual drawing time with a pre-formatted A3 print layout.

VALUE STREAM MAPPING EXCEL DESCRIPTION

Automated Value Stream Mapping Excel Tool is an Excel template (XLSX) available for immediate download upon purchase.

The Automated Value Stream Mapping (VSM) Excel Tool is a premium operational excellence framework designed for Lean practitioners, Six Sigma black belts, supply chain directors, and management consultants. Traditional value stream mapping often introduces structural inefficiencies, forcing teams to manually sketch static diagrams in Visio or PowerPoint that break whenever a cycle time or inventory level shifts. This professional template bridges quantitative operational data with an entirely dynamic, formula-driven visualization engine directly inside Excel.

The tool features an automated two-stage architecture that transforms baseline process metrics into a boardroom-ready executive deployment layout.

Key Architecture and Analytical Capabilities:

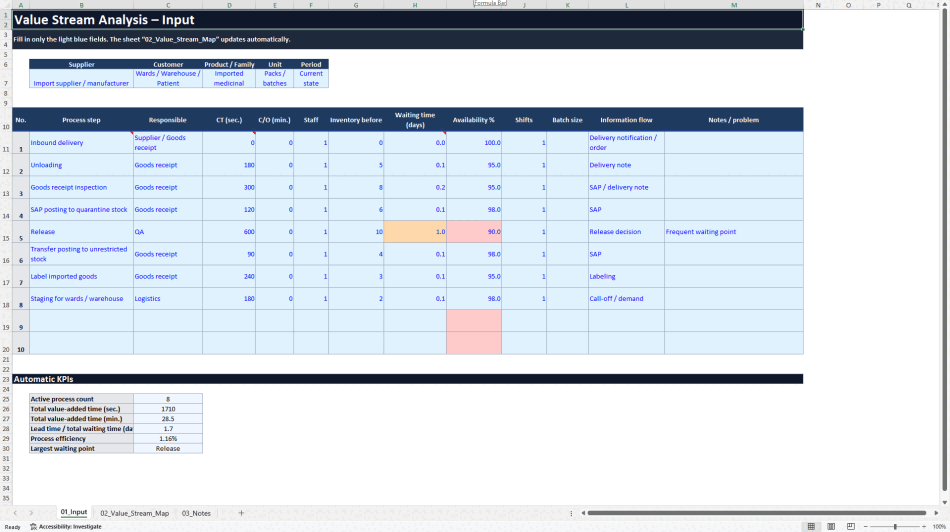

1. Unified Data Input Control: The "01_Input" sheet captures granular process attributes—including process sequence names, individual cycle times (CT), changeover parameters (C/O), staffing levels, upstream inventories, explicit waiting times, and machine availability percentages.

2. Automated Lean Diagnostics: The underlying financial and operations engine instantly computes total active process steps, cumulative value-added time metrics, comprehensive throughput Lead Times (LT), and the overall system Process Efficiency percentage.

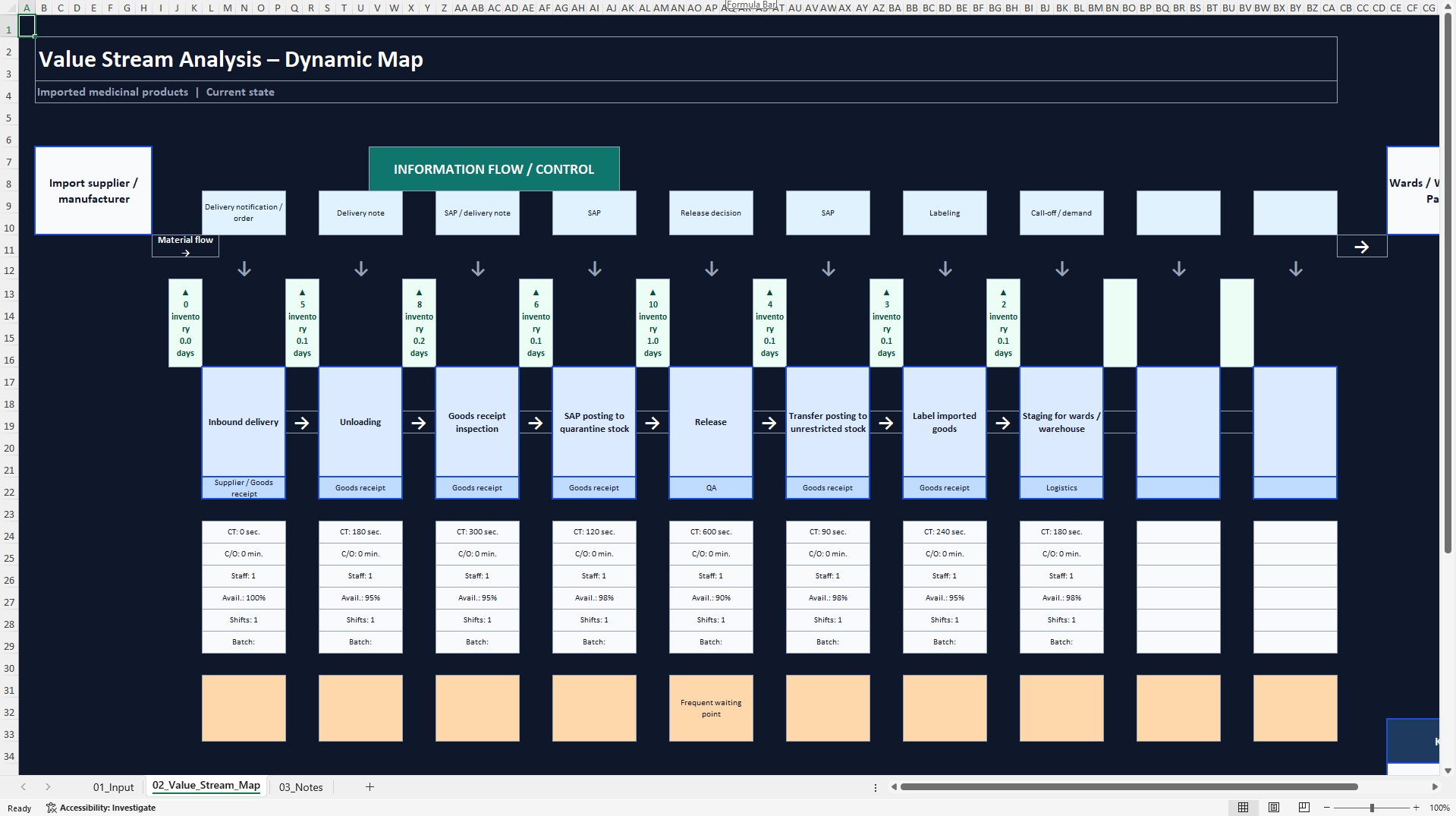

3. Dynamic Visual Map Rendering: The "02_Value_Stream_Map" canvas uses advanced native cell referencing to generate the material and information flow automatically, completely removing manual drawing requirements and hiding unused data blocks dynamically.

4. Executive Print-Ready Infrastructure: Entirely optimized and scaled for standard A3 landscape orientation, ensuring high-impact readability for workshop printouts, corporate Gemba walks, or senior leadership presentations.

Source: Best Practices in Value Stream Mapping Excel: Automated Value Stream Mapping Excel Tool Excel (XLSX) Spreadsheet, supplychainexpert
