BENEFITS OF THIS DOWNLOADABLE EXCEL DOCUMENT
- Generates a fully dynamic, color-coded visual warehouse layout based on coordinate inputs.
- Features a flexible 80x45 grid system with zero hardcoded colors or hidden macros.
- Includes a built-in validation sheet for automatic plausibility and dimension checks.
WAREHOUSE MANAGEMENT EXCEL DESCRIPTION
The Dynamic Warehouse Layout & Grid Planner is an advanced Excel-based engineering tool designed for supply chain managers, logistics consultants, and operations leaders. Designing or reconfiguring a warehouse footprint often requires expensive CAD software or tedious manual drawing. This tool bridges the gap by providing a mathematical, coordinate-driven framework that generates a fully automated, visual warehouse layout directly inside Excel.

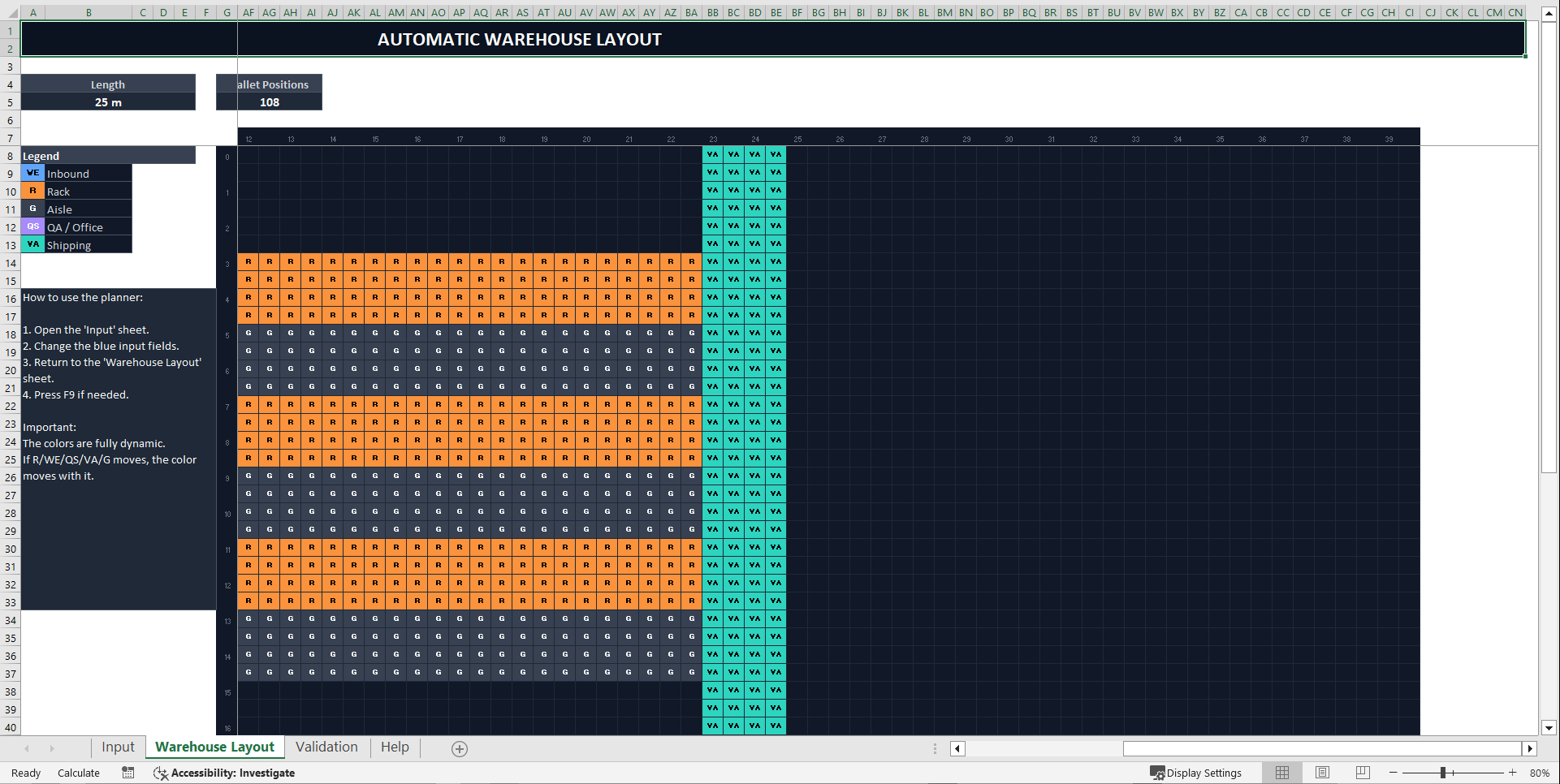

Built on an expansive 80x45 grid mapping system, the template dynamically translates numerical inputs—such as warehouse length, width, rack placement, aisle dimensions, and specific zones—into a clear, color-coded floor plan.
Key Features and Capabilities:
1. Dynamic Cell-Value Mapping: Features smart formatting linked directly to functional designations like Inbound (WE), Racks (R), Aisles (G), QA/Office (QS), and Shipping (VA). When you adjust dimensions, colors move automatically with no static styling left behind.
2. Automated Layout Validation: The integrated "Validation" sheet performs automatic plausibility checks to ensure your dimensions fit perfectly within the physical shell, avoiding layout overlapping or scaling errors.
3. Complete Professional Flexibility: This tool contains no locked worksheets, hidden formulas, or risky VBA code. It runs purely on native Excel logic, ensuring maximum IT security and total freedom for customization.
How to get started:

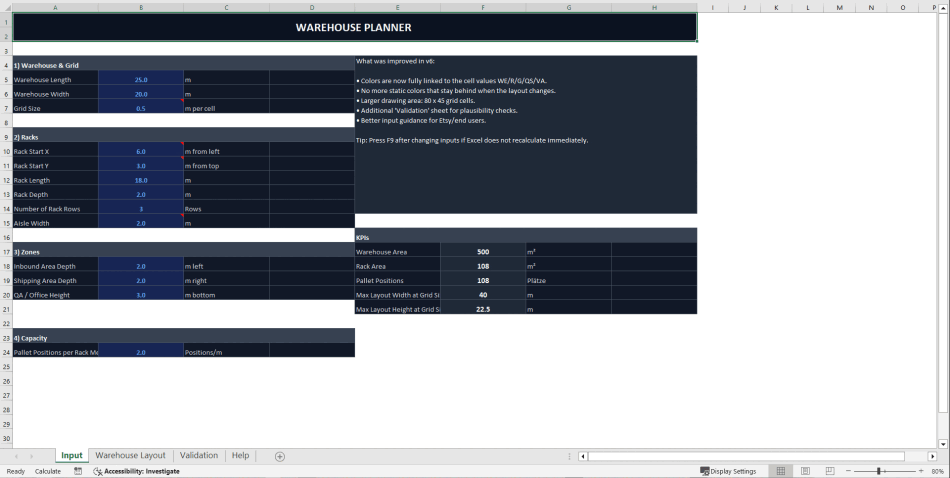

Define your total shell length and width on the "Input" tab. Adjust rack parameters, aisle widths, and dedicated zones. The grid visualizer in the "Warehouse Layout" sheet will instantly update to show your new operational setup.
Got a question about the product? Email us at support@flevy.com or ask the author directly by using the "Ask the Author a Question" form. If you cannot view the preview above this document description, go here to view the large preview instead.
Source: Best Practices in Warehouse Management Excel: Dynamic Warehouse Layout & Grid Planner Excel (XLSX) Spreadsheet, supplychainexpert
