HVAC Load & System Design Excel Toolkit (ASHRAE-Based) – Excel XLSX
Excel (XLSX)
BENEFITS OF THIS DOWNLOADABLE EXCEL DOCUMENT
- Eliminate HVAC Design Guesswork
- Save Hours on Engineering Calculations
- Improve System Efficiency & Reduce Energy Costs
MANUFACTURING EXCEL DESCRIPTION
Design HVAC systems with confidence using this advanced, engineering-grade Excel toolkit built for real-world applications. The HVAC Load Estimators V2 is a comprehensive solution for calculating heat gain/loss, sizing duct systems, and performing psychrometric analysis—eliminating guesswork and reducing costly design errors.

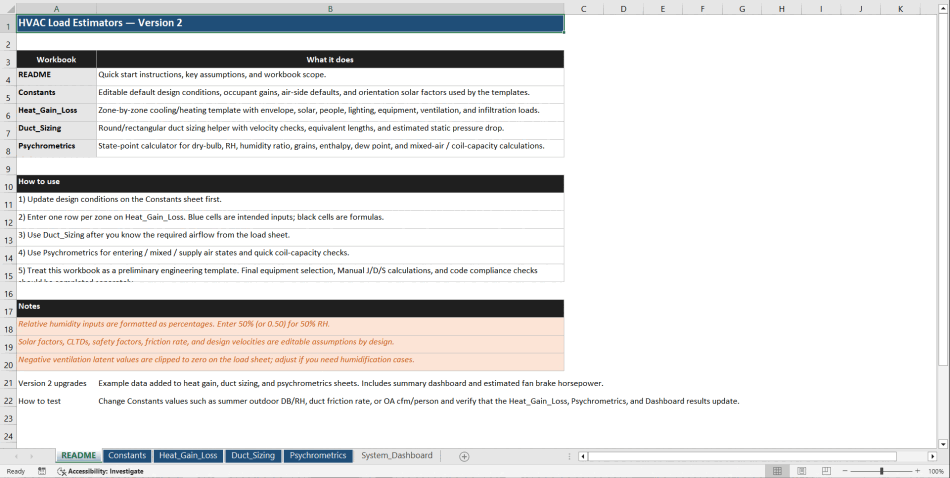

Developed with practical engineering use in mind, this toolkit integrates core HVAC calculations into a structured, easy-to-use Excel environment. Whether you're working on industrial facilities, commercial buildings, or plant upgrades, this tool provides fast, reliable outputs aligned with industry best practices.

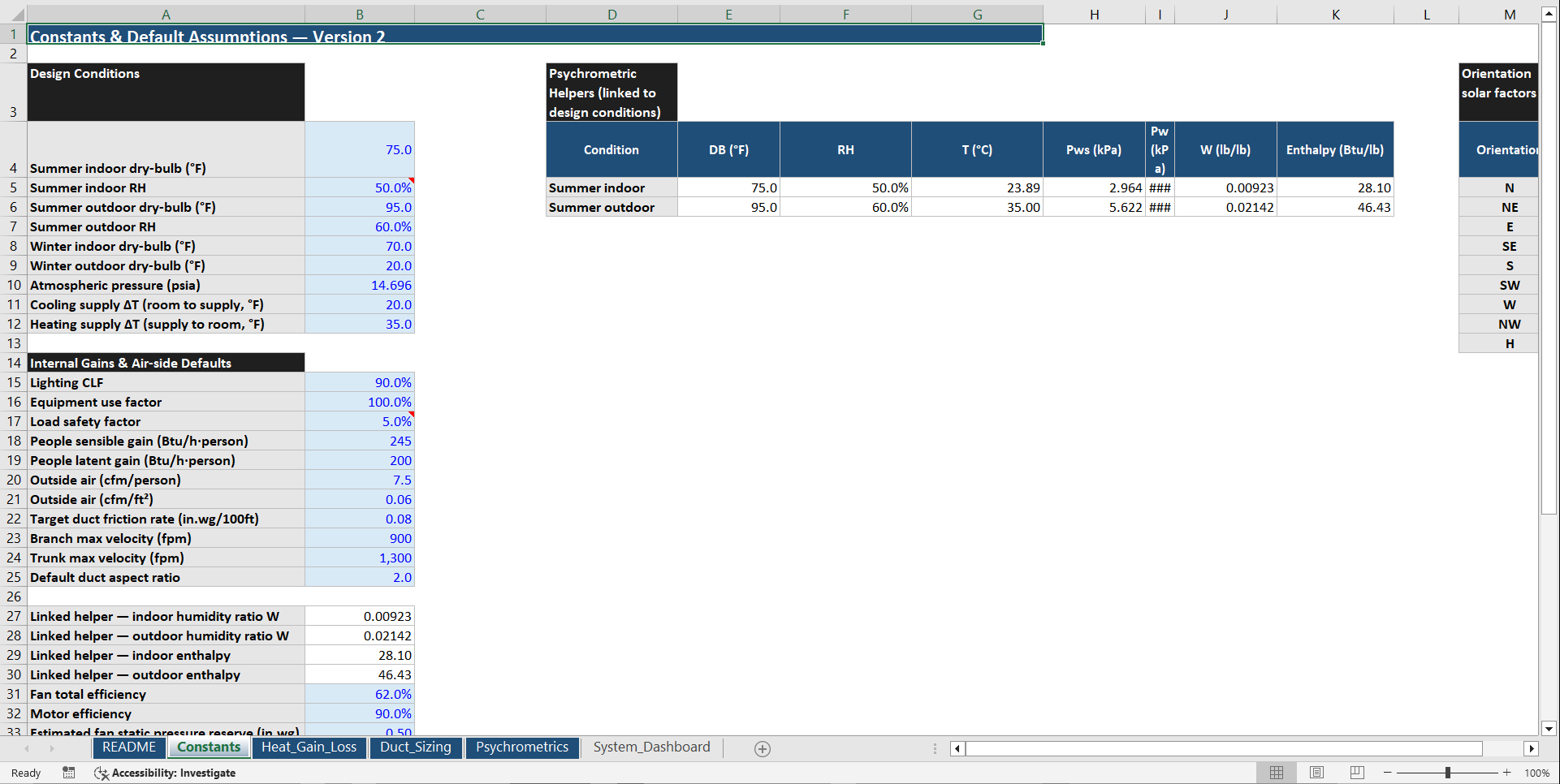

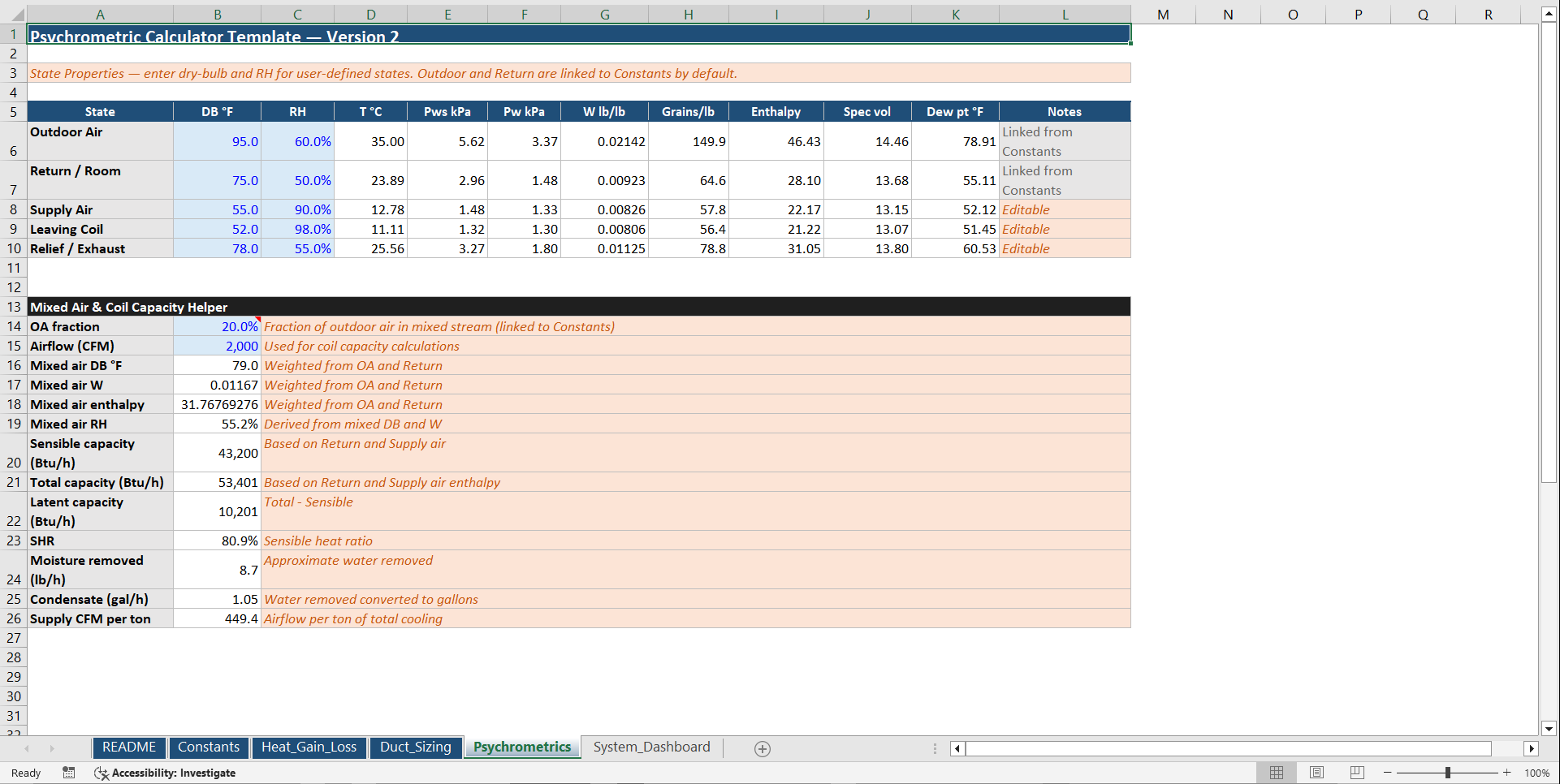

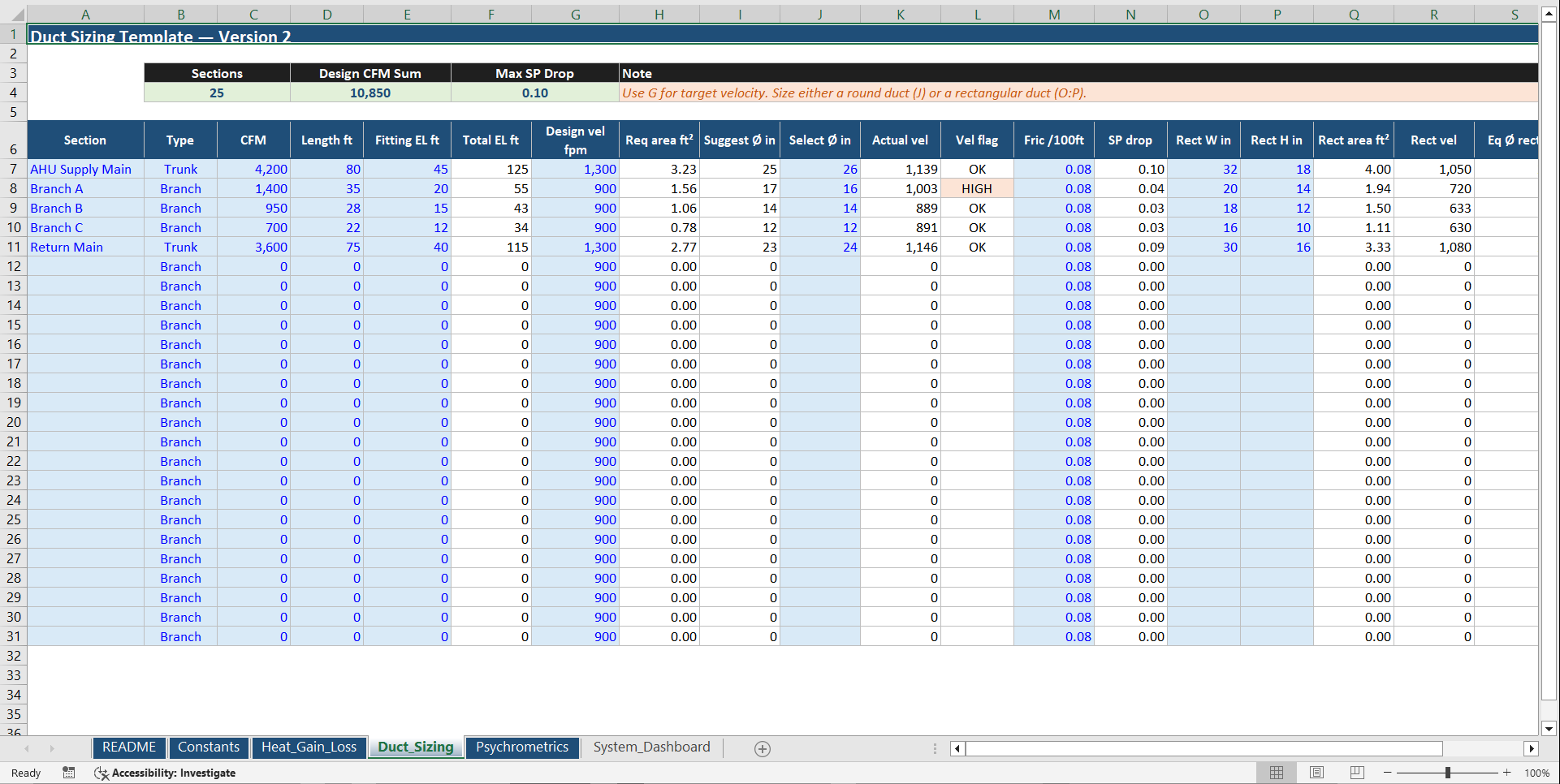

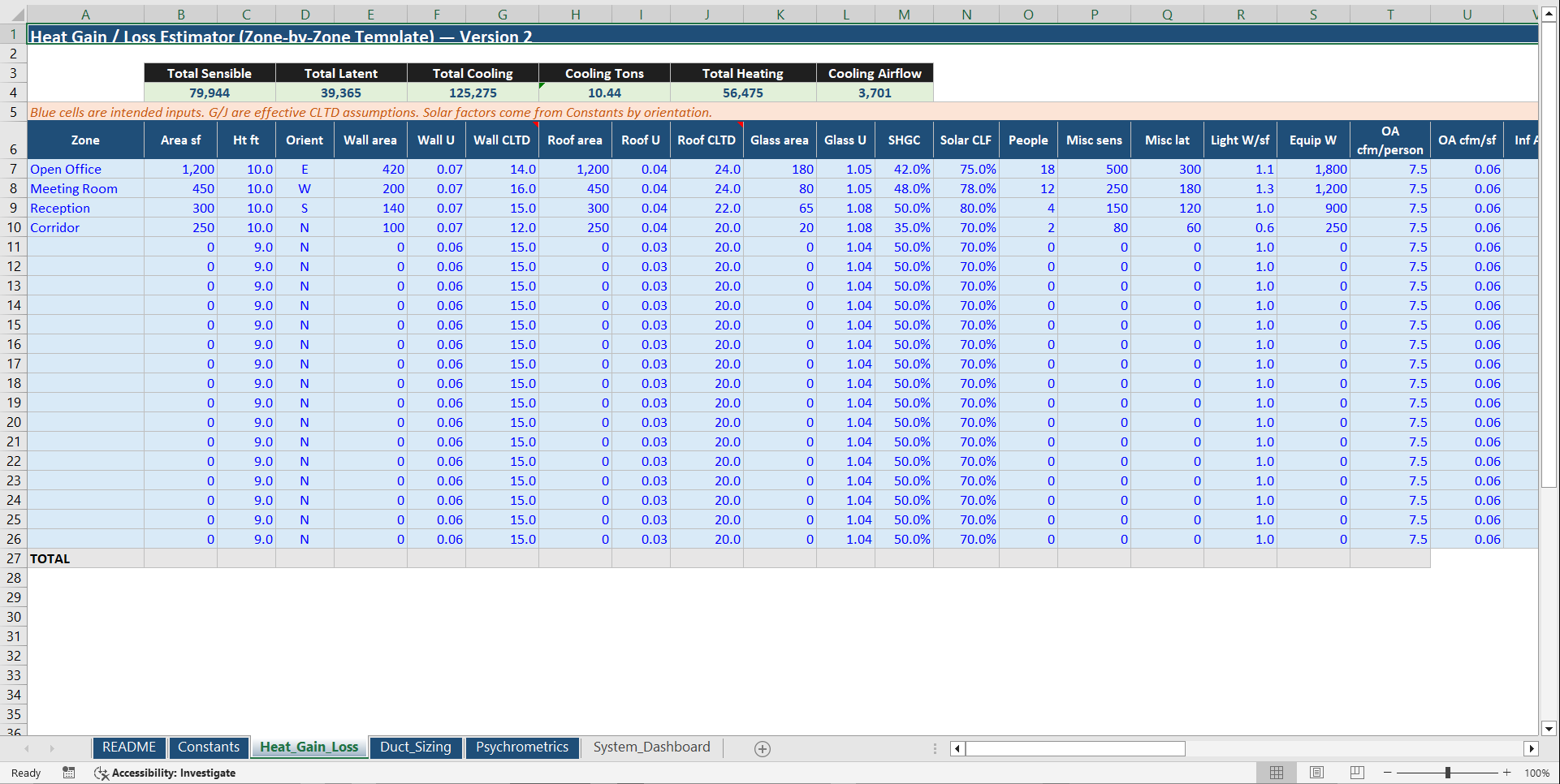

The heat load module allows you to calculate cooling and heating requirements based on room dimensions, temperature differences, and air properties. The duct sizing module ensures optimal airflow design by calculating duct area, velocity, and equivalent diameters, helping prevent inefficiencies and pressure losses. The psychrometric module provides key air properties such as humidity ratio, enabling better control of indoor air quality and comfort.

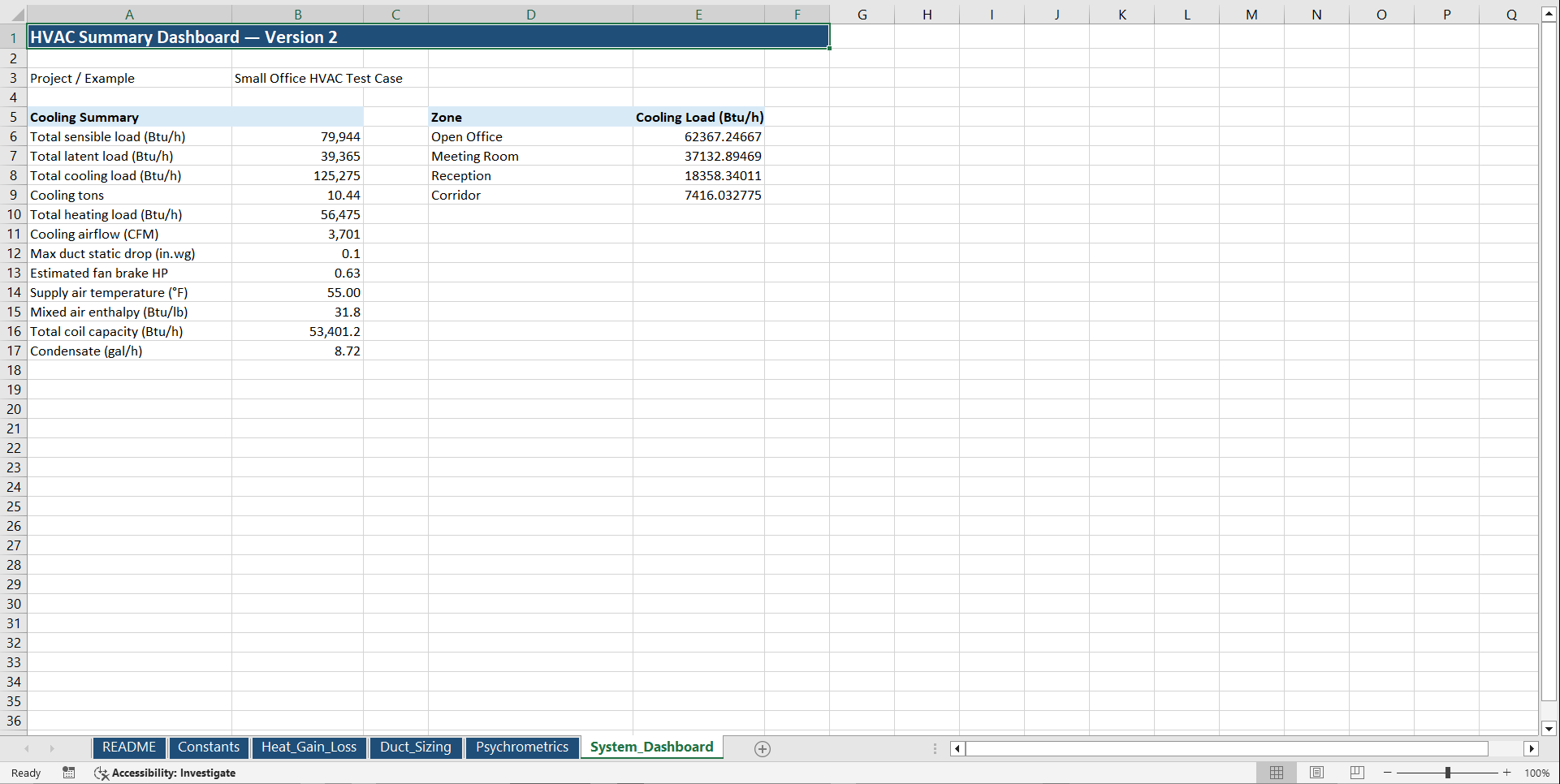

Version 2 includes enhanced features such as a system dashboard for quick performance overview, fan power estimation for energy analysis, and preloaded example inputs to validate calculations instantly. Built-in constants and structured sheets ensure consistency across all calculations.
This toolkit is ideal for mechanical engineers, HVAC designers, maintenance professionals, and reliability specialists who need accurate, repeatable calculations without relying on overly complex software.
By using this tool, you can reduce design time, improve system efficiency, and make better engineering decisions backed by clear data.
If you're serious about HVAC design and want a professional-grade calculation tool that works, this is built for you
