Beam Deflection Analyzer – Excel XLSX
Excel (XLSX)
BENEFITS OF THIS DOWNLOADABLE EXCEL DOCUMENT
- Save Time on Engineering Calculations
- Make Confident Design Decisions
- Present Professional, Client-Ready Results
MANUFACTURING EXCEL DESCRIPTION
Beam Deflection & Stress Analyzer PRO (Excel Toolkit) is a professional engineering solution designed to help users quickly evaluate beam performance under common loading conditions without relying on complex simulation software. Built for practical, real-world use, this tool enables engineers to calculate shear force, bending moment, deflection, and stress with speed and accuracy.

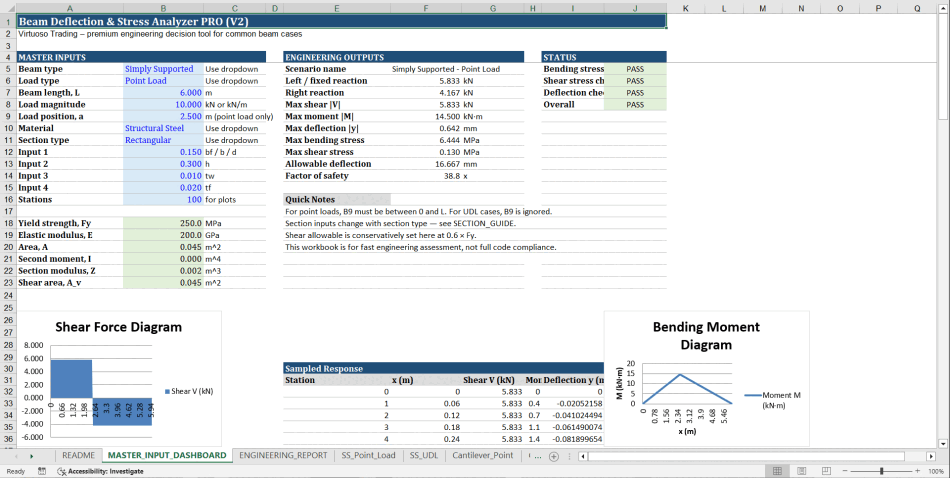

The workbook features a centralized master input dashboard where users can define beam type (simply supported or cantilever), loading conditions (point load or uniformly distributed load), material selection, and section geometry. A built-in material database automatically applies key properties such as Young's modulus and yield strength, while the section calculator determines moment of inertia and section modulus for common shapes.

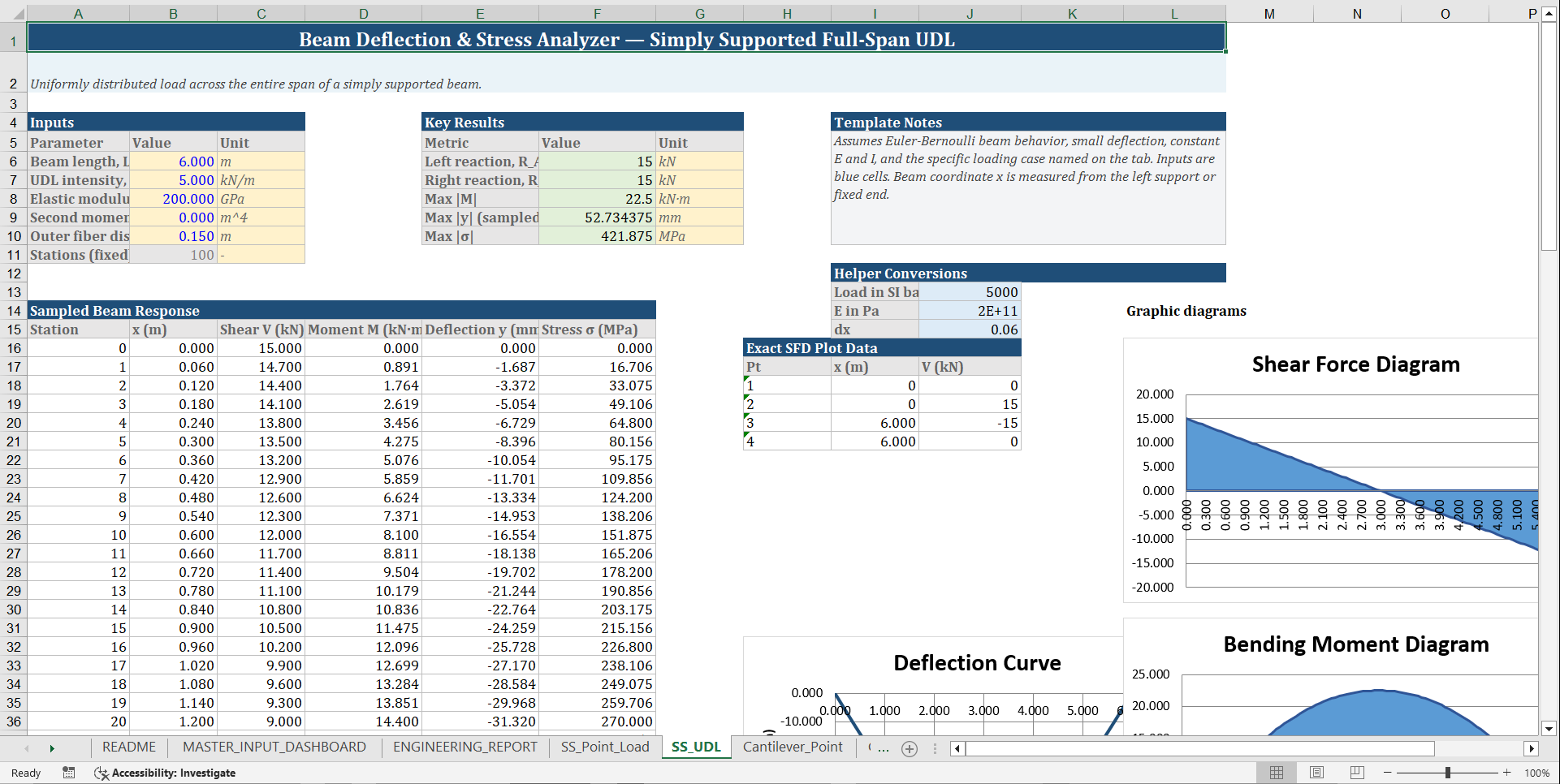

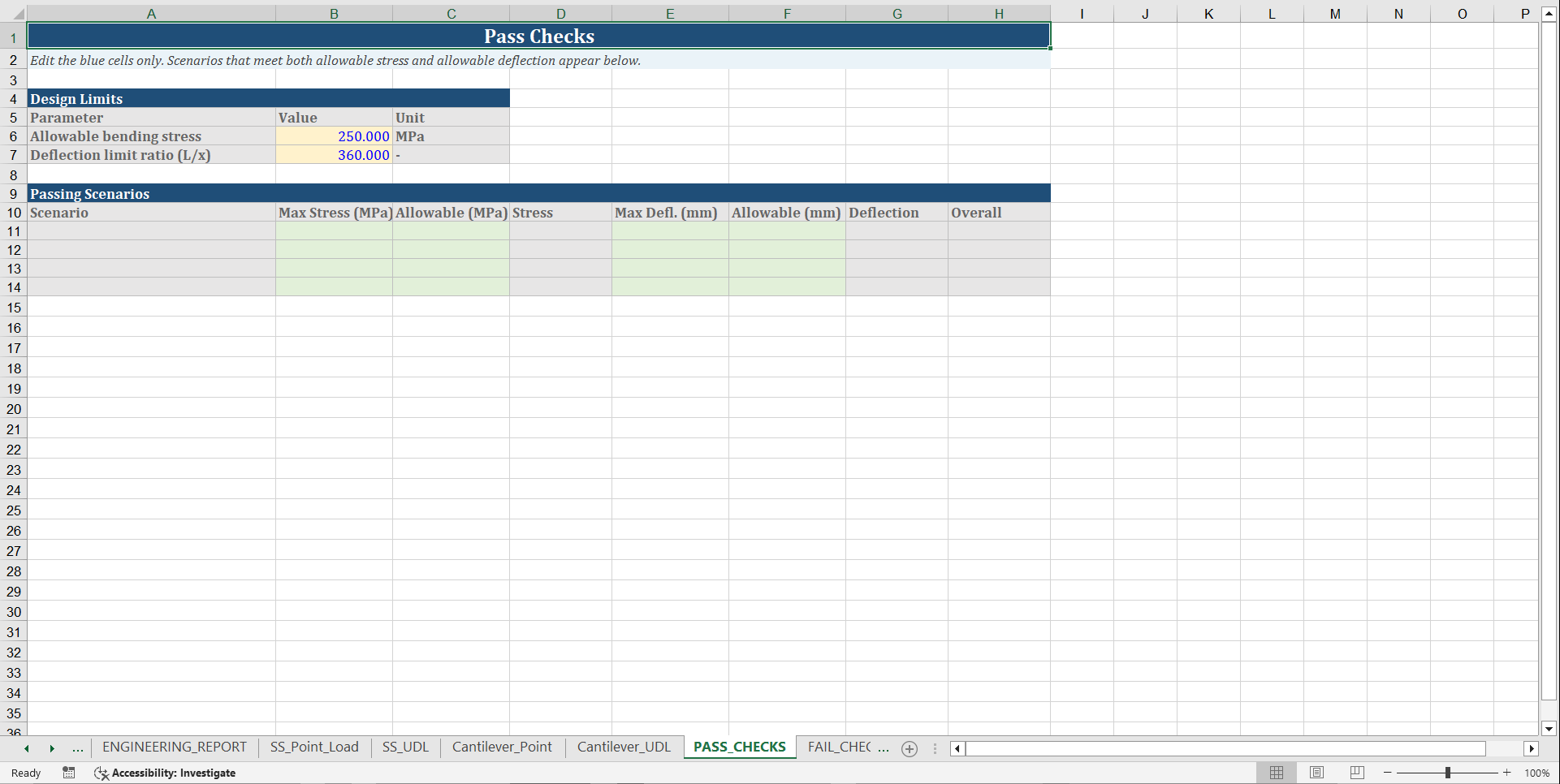

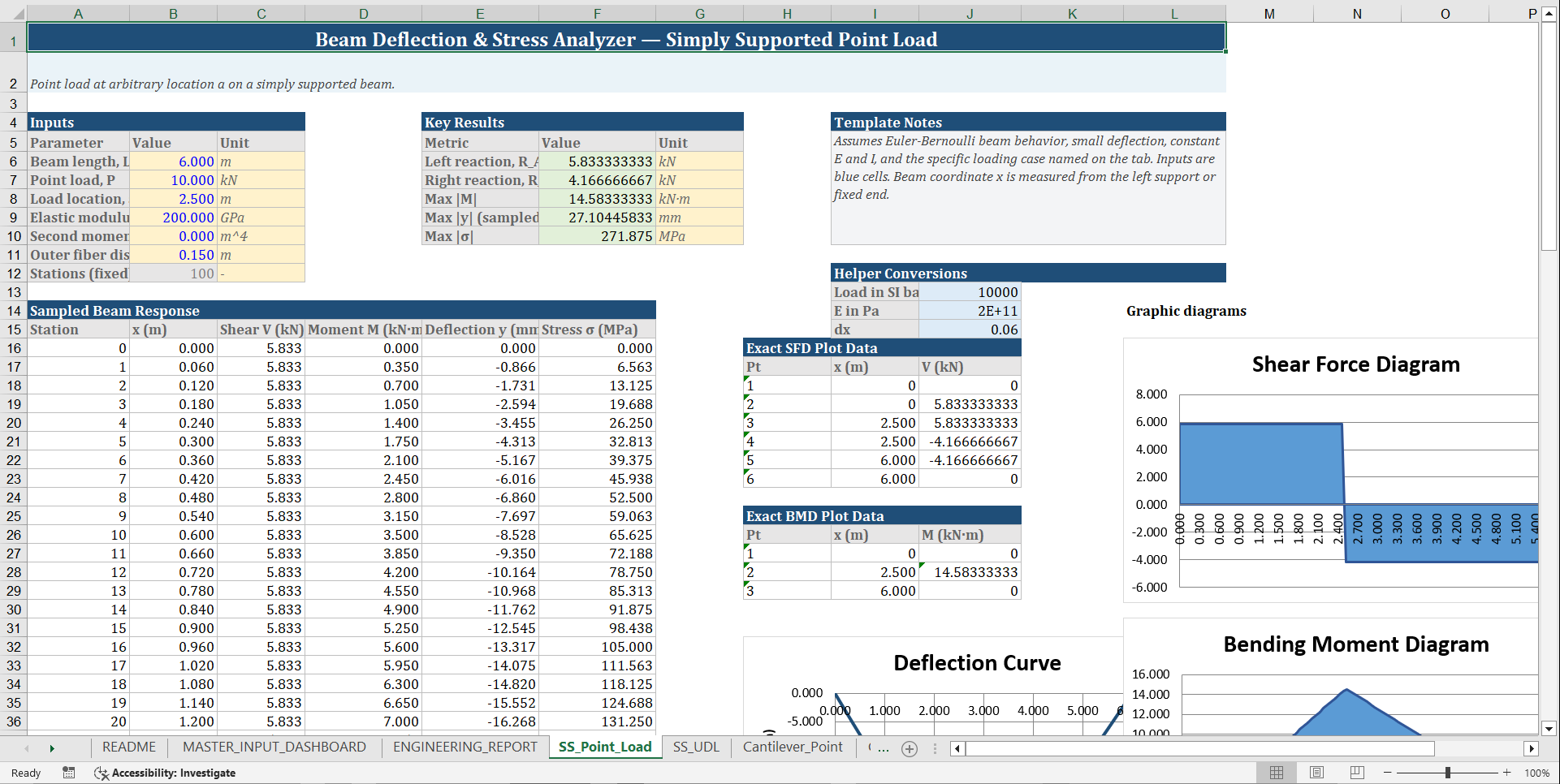

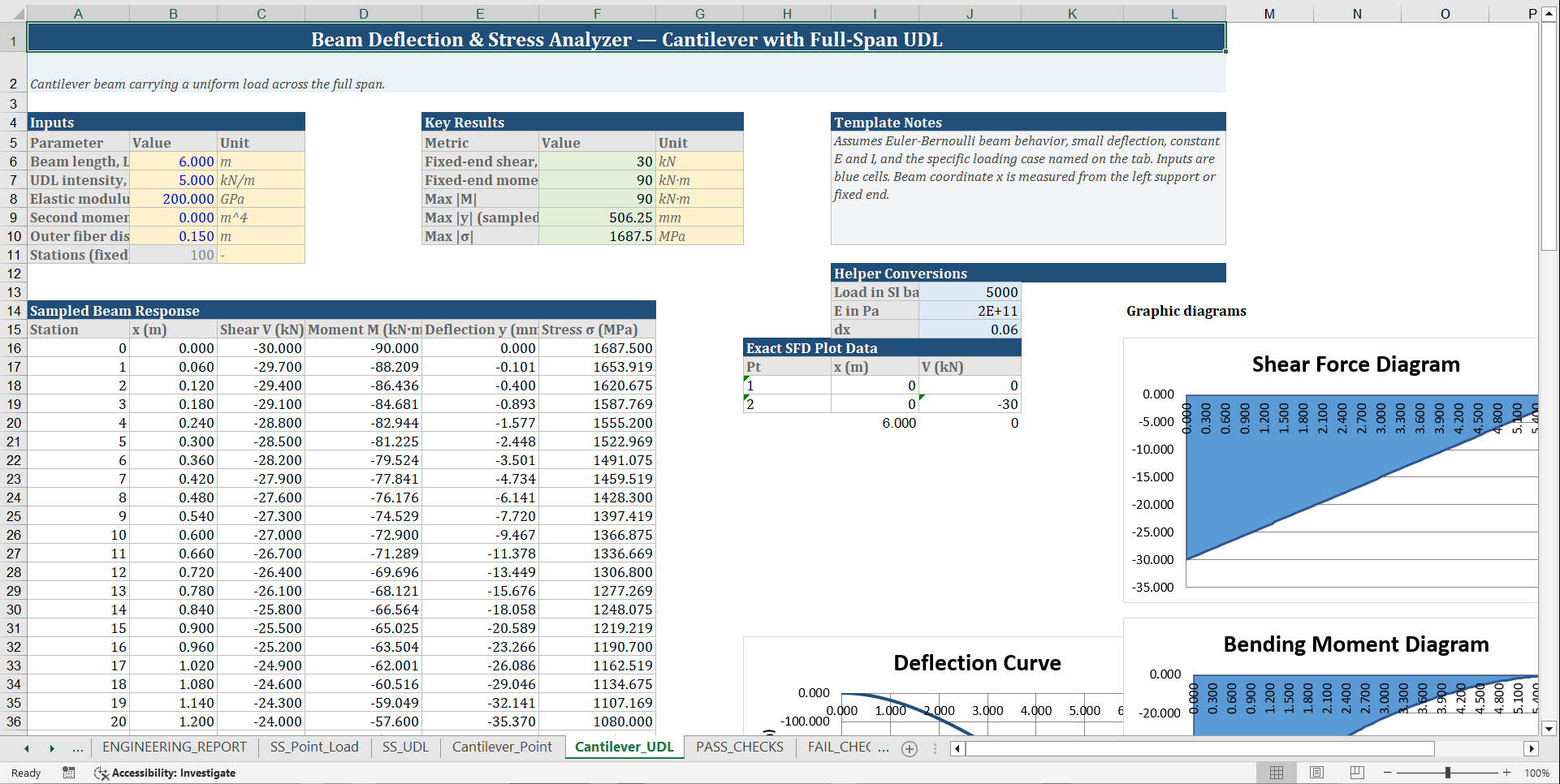

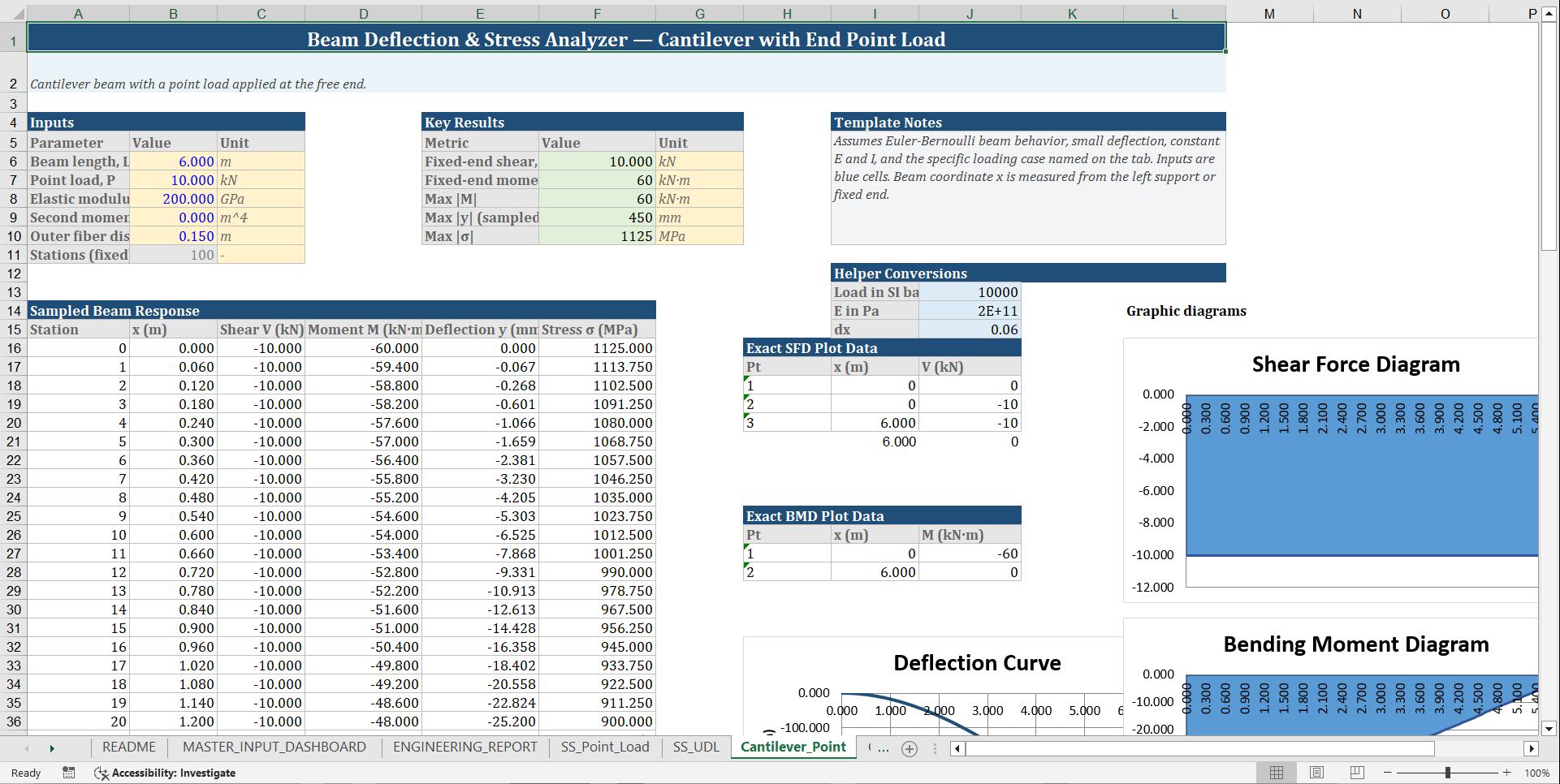

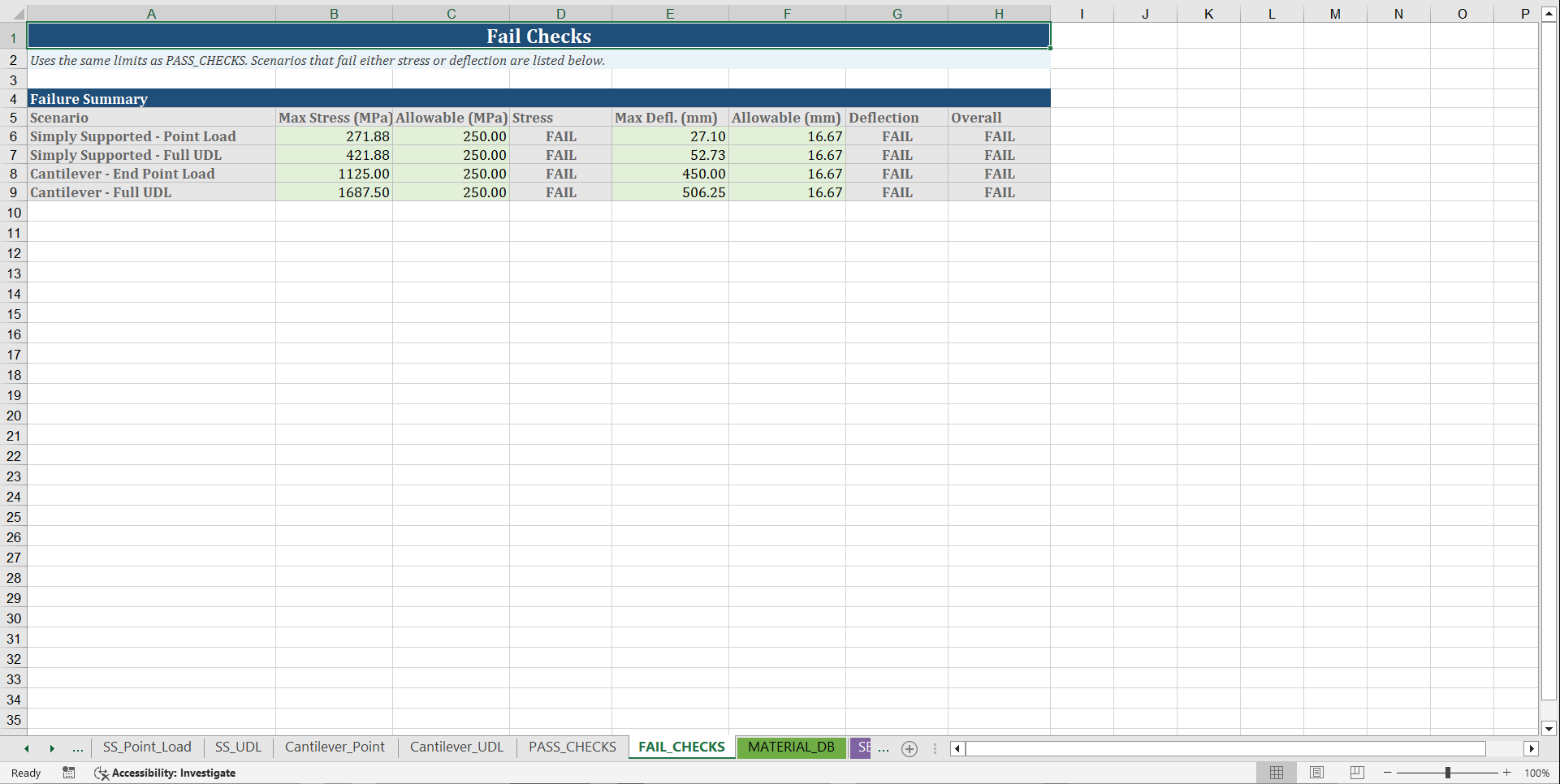

The tool generates clear, shaded diagrams for shear force, bending moment, and deflection, making it easy to visualize structural behavior and identify critical points along the beam. Integrated engineering checks validate bending stress, shear stress, deflection limits (L/360), and factor of safety, providing immediate PASS/FAIL feedback to support confident design decisions.

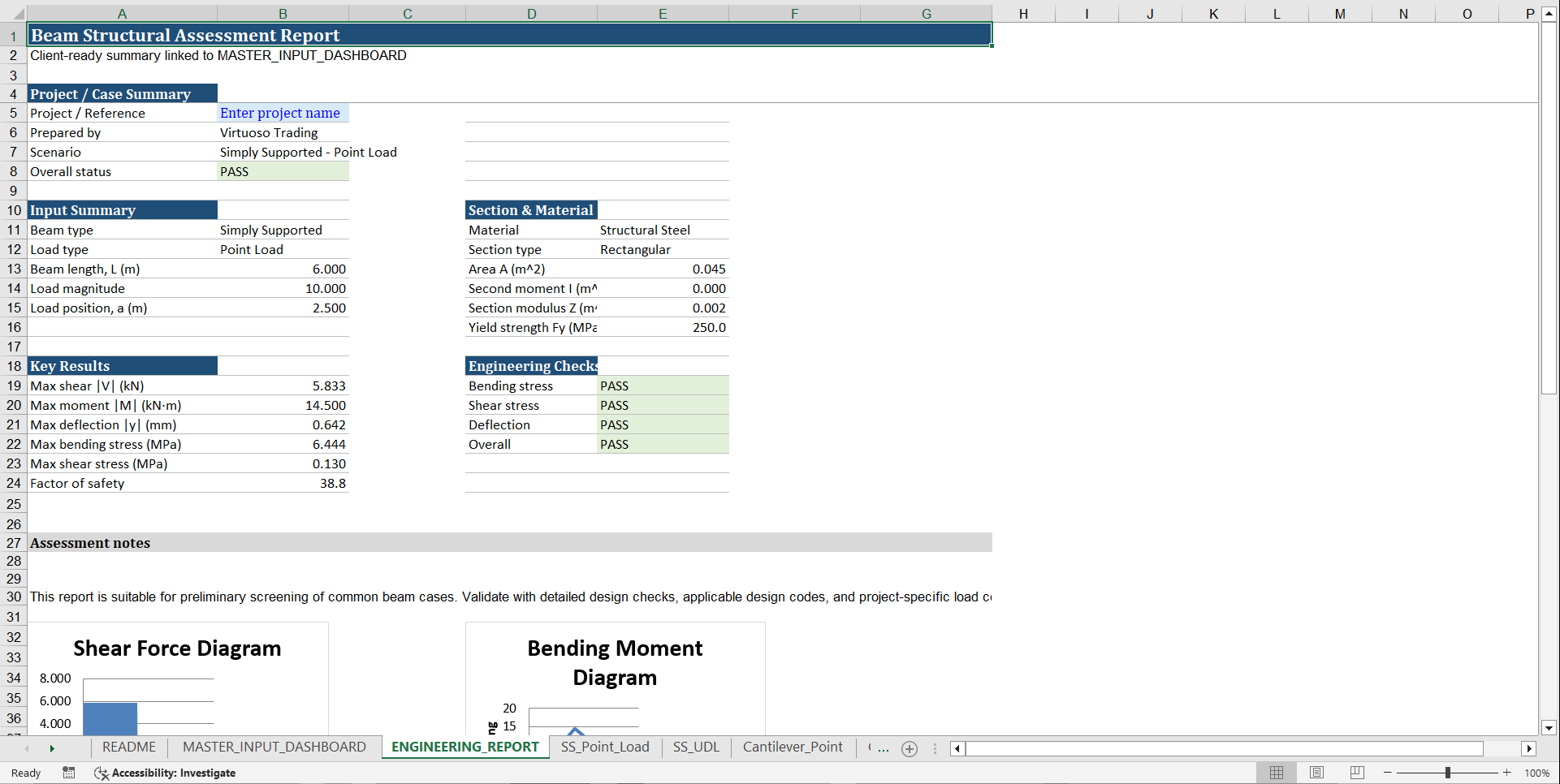

A dedicated engineering report sheet summarizes all inputs and results in a clean, professional format suitable for client presentations or internal documentation. This makes the tool especially valuable for consultants, plant engineers, and maintenance professionals who need to communicate results effectively.
Ideal for preliminary design, troubleshooting, and validation, this toolkit bridges the gap between manual calculations and advanced analysis software—delivering a fast, reliable, and user-friendly solution entirely within Excel.
Got a question about the product? Email us at support@flevy.com or ask the author directly by using the "Ask the Author a Question" form. If you cannot view the preview above this document description, go here to view the large preview instead.
Source: Best Practices in Manufacturing Excel: Beam Deflection Analyzer Excel (XLSX) Spreadsheet, Virtuoso Trading
ABOUT THE AUTHOR
I am a Reliability Engineer with over 20 years of experience in bulk material handling systems across industries including ports, mining, cement, sugar, and fertilizer plants in Africa. My expertise focuses on eliminating repeat equipment failures in conveyors, rotating equipment, and mechanical drive systems.
With a background in resident engineering, I specialize in practical, field-driven
... [read more]
