VSD Commissioning & Reliability Master Toolkit – Excel XLSX

Excel (XLSX)

$50.00
Mechanical Engineer with 20+ years in bulk material handling, specializing in failure reduction, ISO 14224 analysis, and engineering toolkits for industrial plants and terminals.
Add to Cart



Immediate download
Fully editable Excel
Free lifetime updates

BENEFITS OF THIS DOWNLOADABLE EXCEL DOCUMENT

  1. Eliminate Costly Commissioning Failures
  2. Achieve Faster, Smoother Startups
  3. Turn Commissioning Data into Actionable Insights

MANUFACTURING EXCEL DESCRIPTION

VSD commissioning Excel: Download VSD Commissioning & Reliability Master Toolkit (xlsx) — checklists, parameter verification, fault logging & client reports for drives. VSD Commissioning & Reliability Master Toolkit is an Excel template (XLSX) available for immediate download upon purchase.

The VSD Commissioning & Reliability Master Toolkit (Enterprise Edition) is a comprehensive, field-proven system designed to ensure successful startup, stable operation, and long-term reliability of Variable Speed Drives (VSDs) across industrial applications.

Developed from real-world experience in bulk material handling plants, terminals, and heavy process industries, this toolkit goes far beyond basic checklists. It provides a structured, data-driven framework to eliminate common commissioning errors, reduce nuisance trips, and prevent early-life failures that often result from poor setup, incorrect parameters, or inadequate verification.

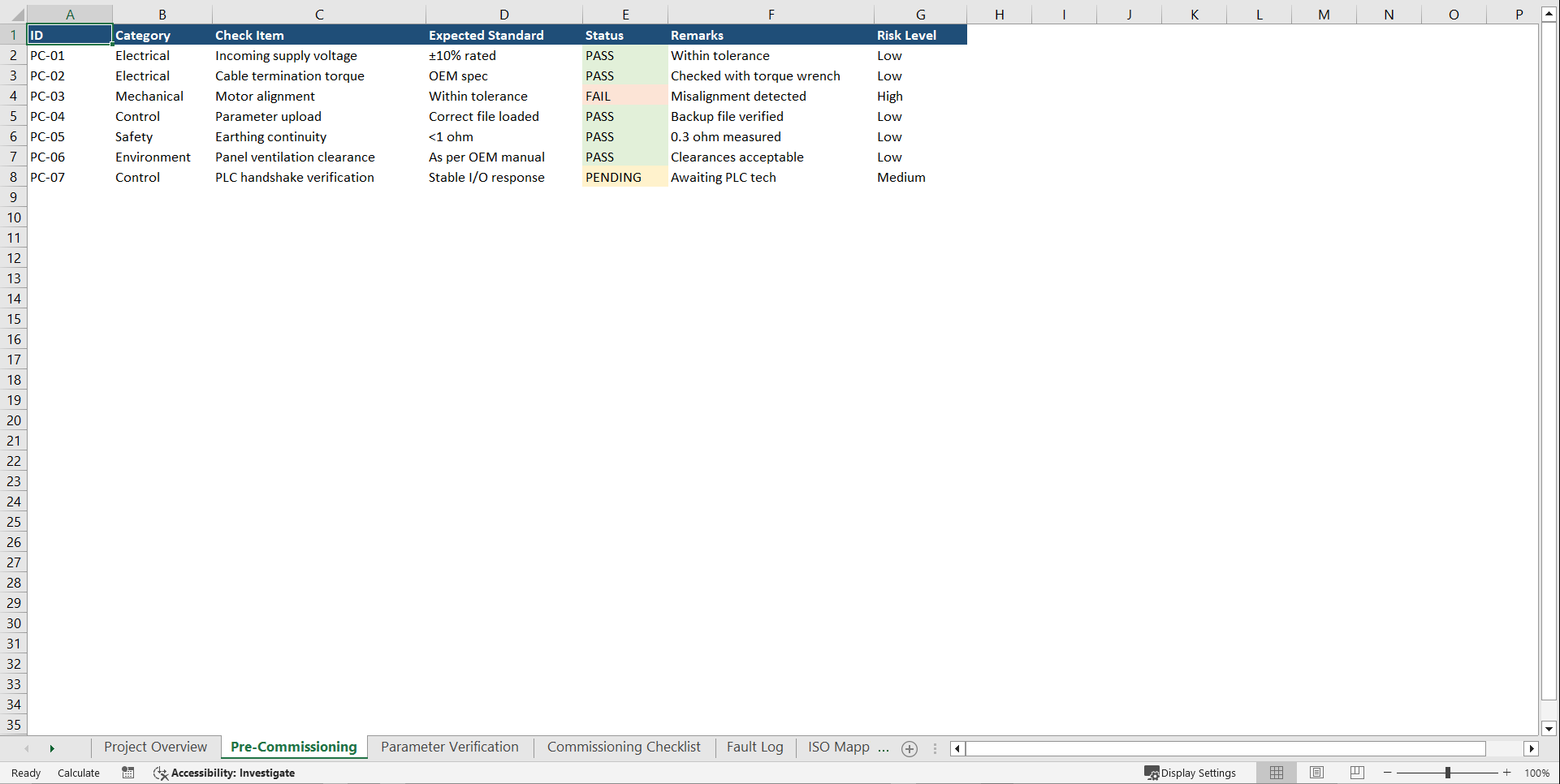

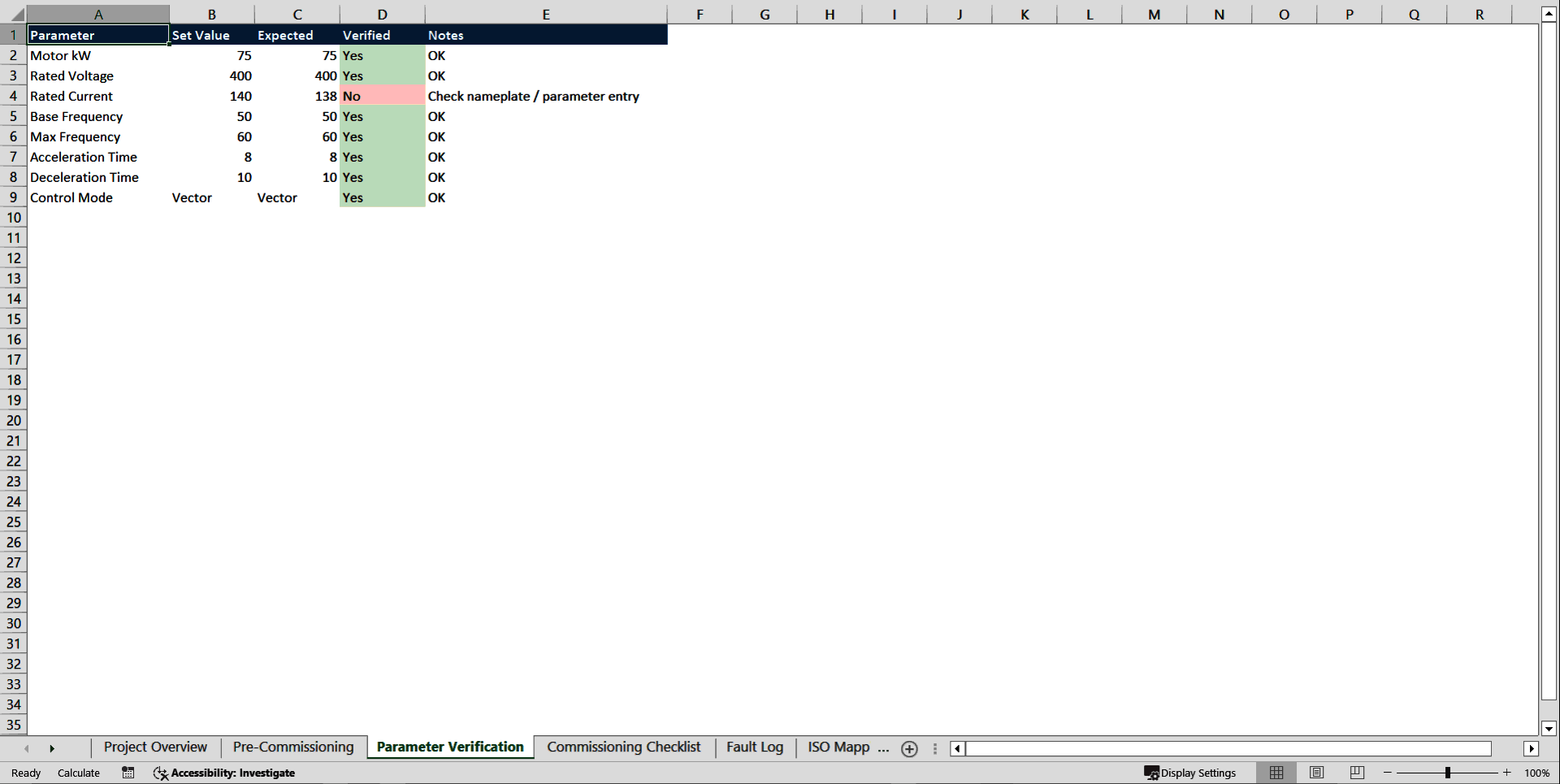

The toolkit is built around the full VSD lifecycle – from pre-start inspection to live commissioning, parameter validation, and ongoing operational assurance. It includes detailed pre-commissioning checks covering electrical integrity, mechanical installation, control logic, safety systems, and environmental conditions. The parameter verification module ensures all critical motor and drive settings align with design intent and manufacturer specifications, reducing the risk of overloads, instability, or premature equipment damage.

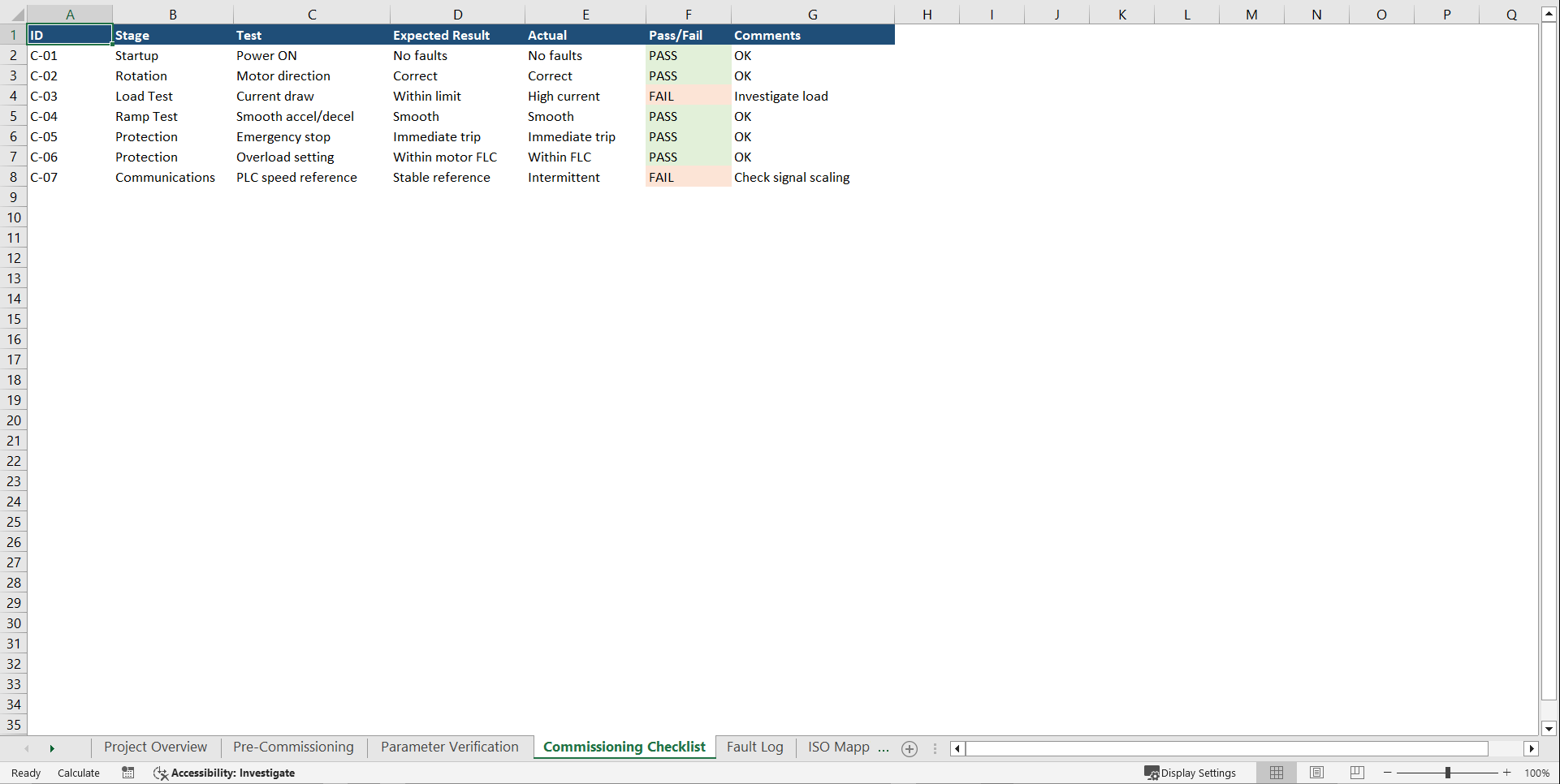

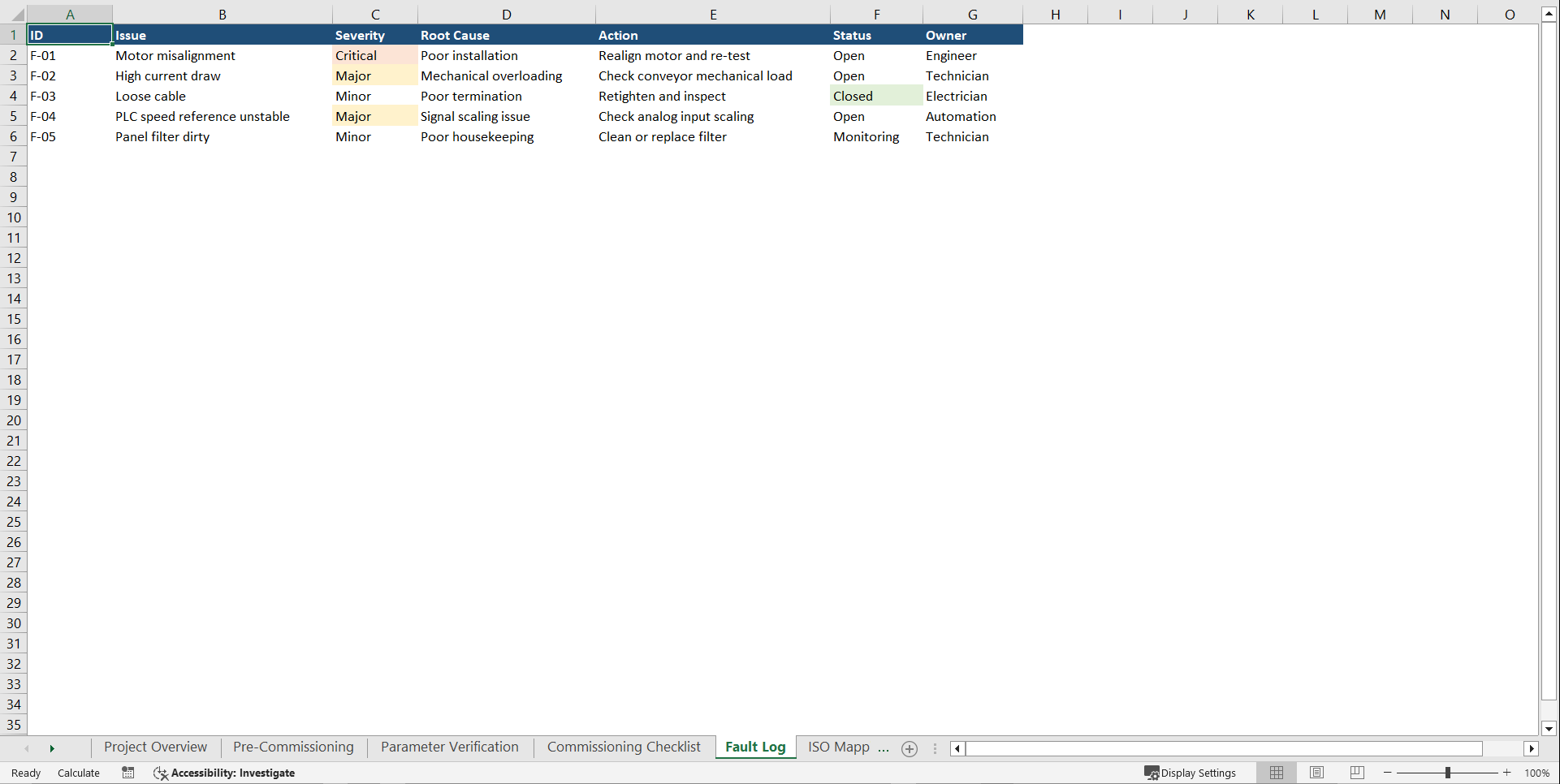

A dedicated commissioning checklist enables engineers to validate performance under real operating conditions, including startup behaviour, load response, ramp control, protection functionality, and communication with PLC systems. Integrated fault logging and punch-list tracking allow teams to capture, prioritise, and resolve issues systematically, ensuring nothing is missed before handover.

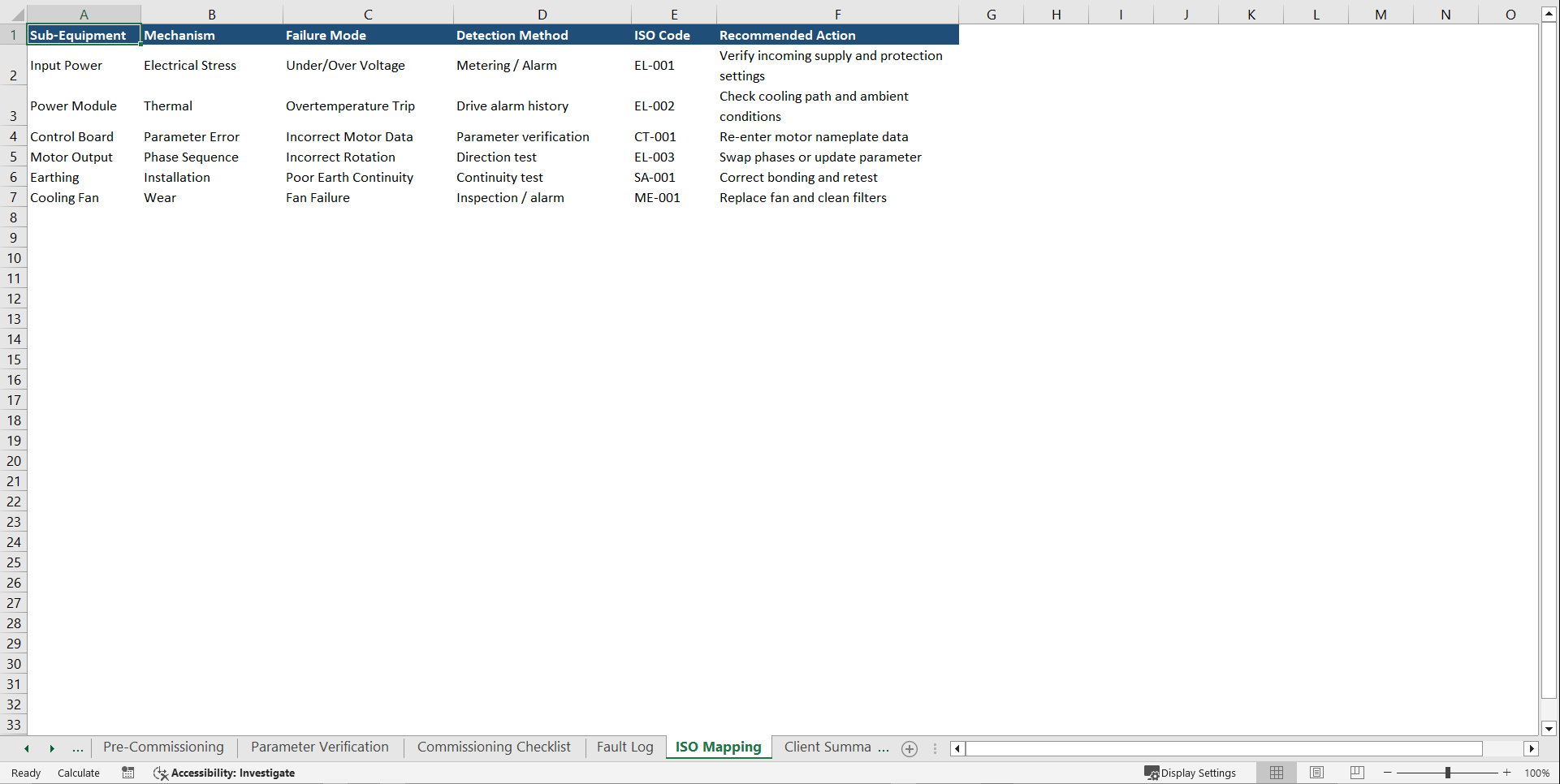

What sets this toolkit apart is its enterprise-level structure and reliability focus. It incorporates risk-based thinking, criticality classification, and ISO-aligned failure mapping, making it suitable not only for technicians, but also for reliability engineers, maintenance managers, and consultants delivering high-value diagnostic services.

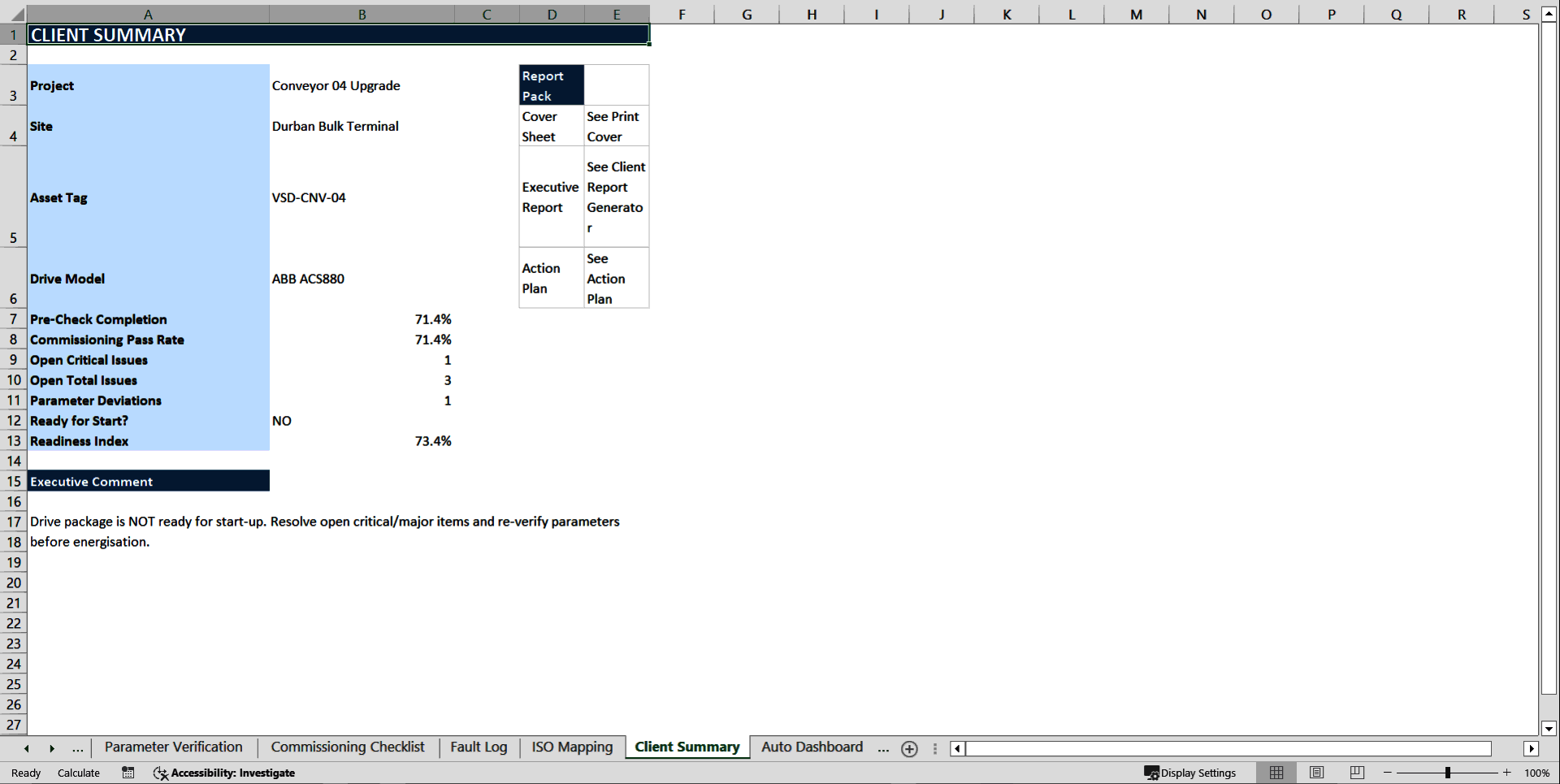

The built-in dashboards and client reporting features transform raw commissioning data into clear, executive-level insights. This enables faster decision-making, improved accountability, and a professional standard of documentation that can be presented directly to clients or stakeholders.

Whether you are commissioning new equipment, auditing an existing installation, or standardising your maintenance approach, this toolkit provides a complete, scalable solution to improve VSD performance, reduce downtime, and enhance overall plant reliability.

Got a question about the product? Email us at support@flevy.com or ask the author directly by using the "Ask the Author a Question" form. If you cannot view the preview above this document description, go here to view the large preview instead.

Source: Best Practices in Manufacturing Excel: VSD Commissioning & Reliability Master Toolkit Excel (XLSX) Spreadsheet, Virtuoso Trading


$50.00
Mechanical Engineer with 20+ years in bulk material handling, specializing in failure reduction, ISO 14224 analysis, and engineering toolkits for industrial plants and terminals.
Add to Cart


ABOUT THE AUTHOR

Author image
Additional documents from author: 18

I am a Reliability Engineer with over 20 years of experience in bulk material handling systems across industries including ports, mining, cement, sugar, and fertilizer plants in Africa. My expertise focuses on eliminating repeat equipment failures in conveyors, rotating equipment, and mechanical drive systems.

With a background in resident engineering, I specialize in practical, field-driven ... [read more]
