Predictive Vibration Intelligence System – Excel XLSX
Excel (XLSX)
BENEFITS OF THIS DOWNLOADABLE EXCEL DOCUMENT
- Predict Failures Before They Happen
- Turn Raw Data into Clear Actions
- Reduce Downtime and Protect Revenue
MANUFACTURING EXCEL DESCRIPTION
The Predictive Vibration Intelligence System (V3) is a professional-grade Excel toolkit designed for reliability engineers, maintenance teams, and industrial consultants who need to move beyond basic vibration logging and into true predictive maintenance.
Built around globally recognised standards such as ISO 10816 and ISO 14224, this system transforms raw vibration measurements into structured, actionable insights that drive real operational decisions. It is specifically engineered for rotating equipment including motors, pumps, fans, gearboxes, and conveyor systems commonly found in plants, terminals, and heavy industrial environments.

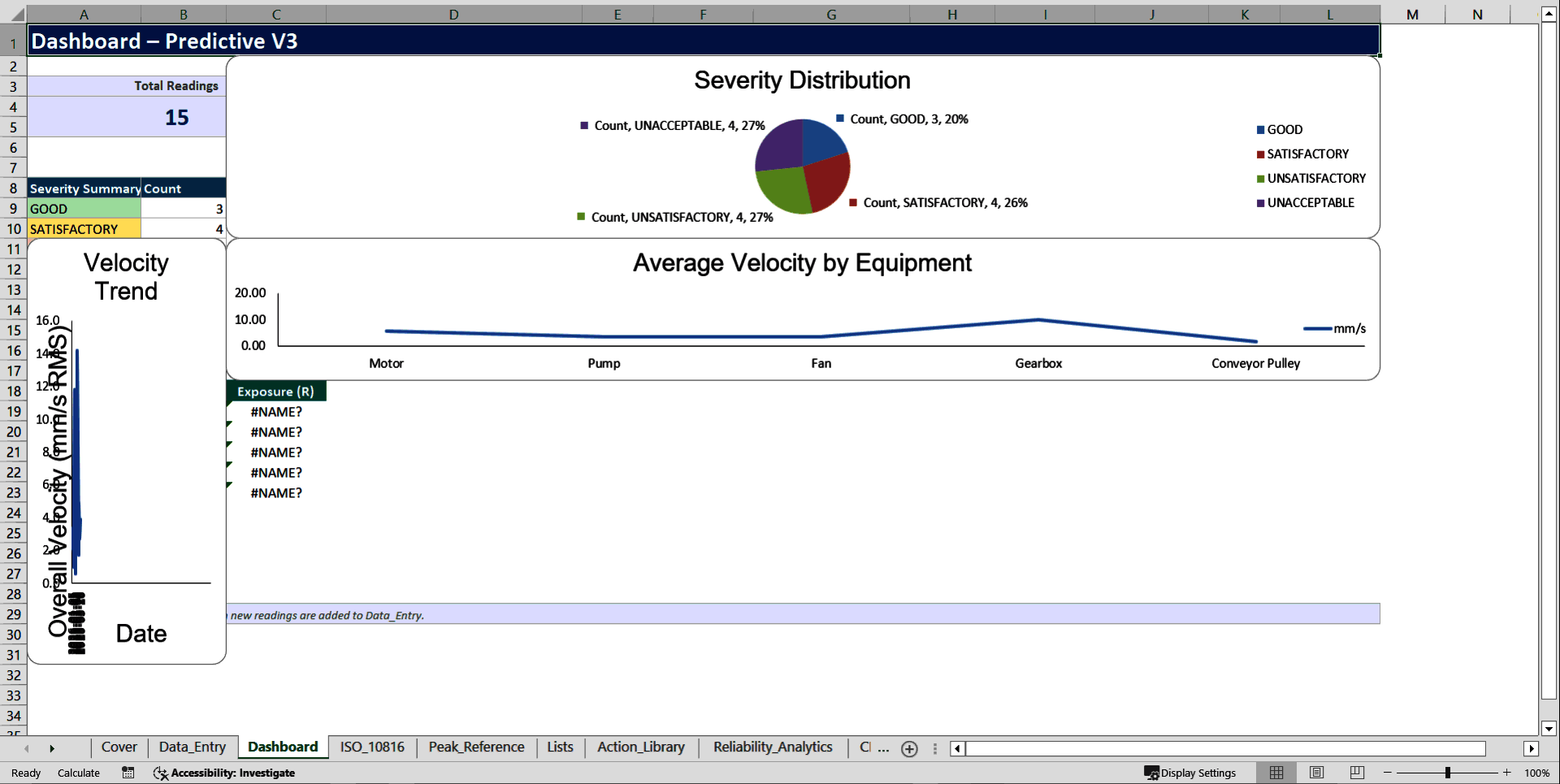

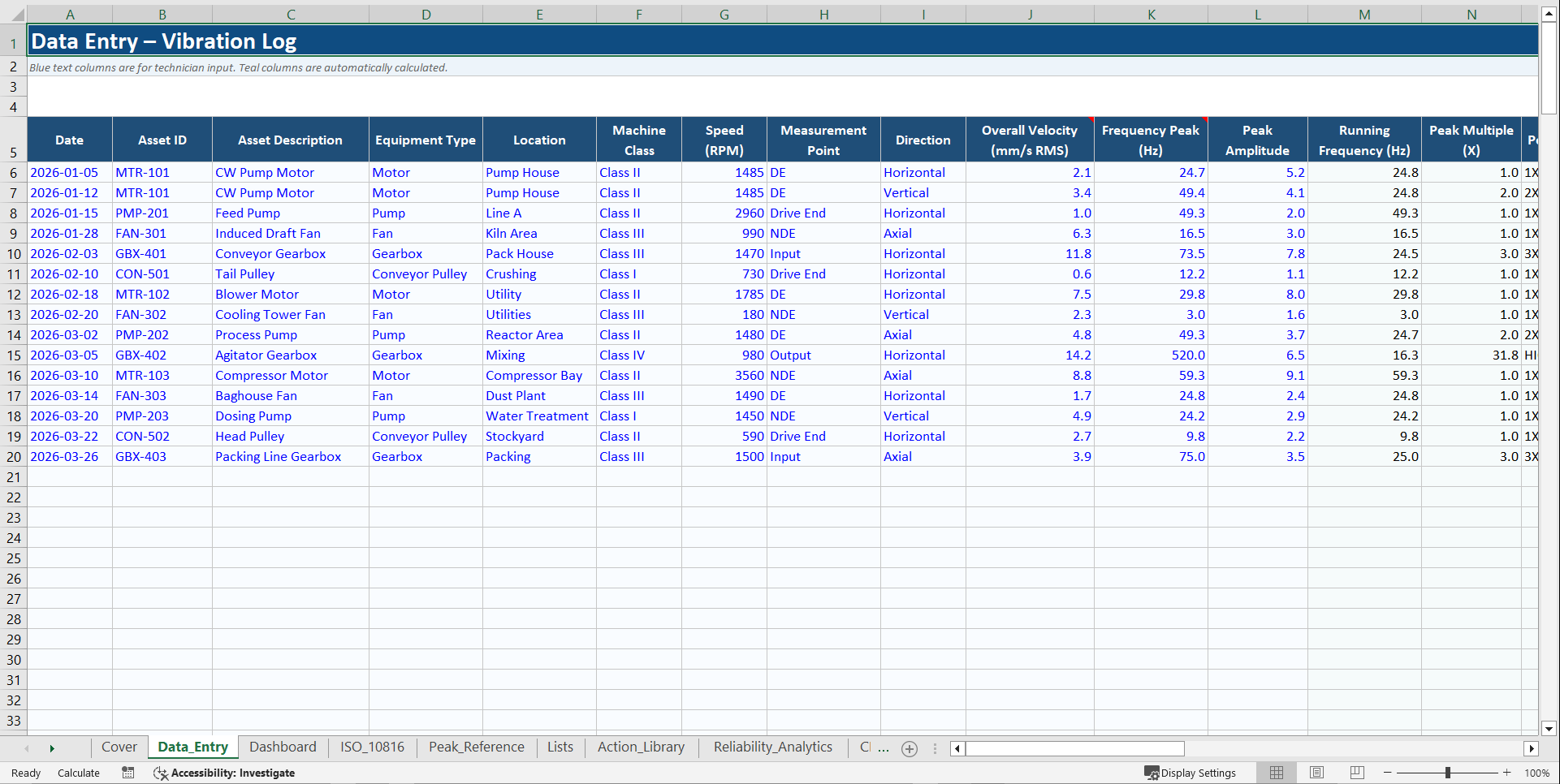

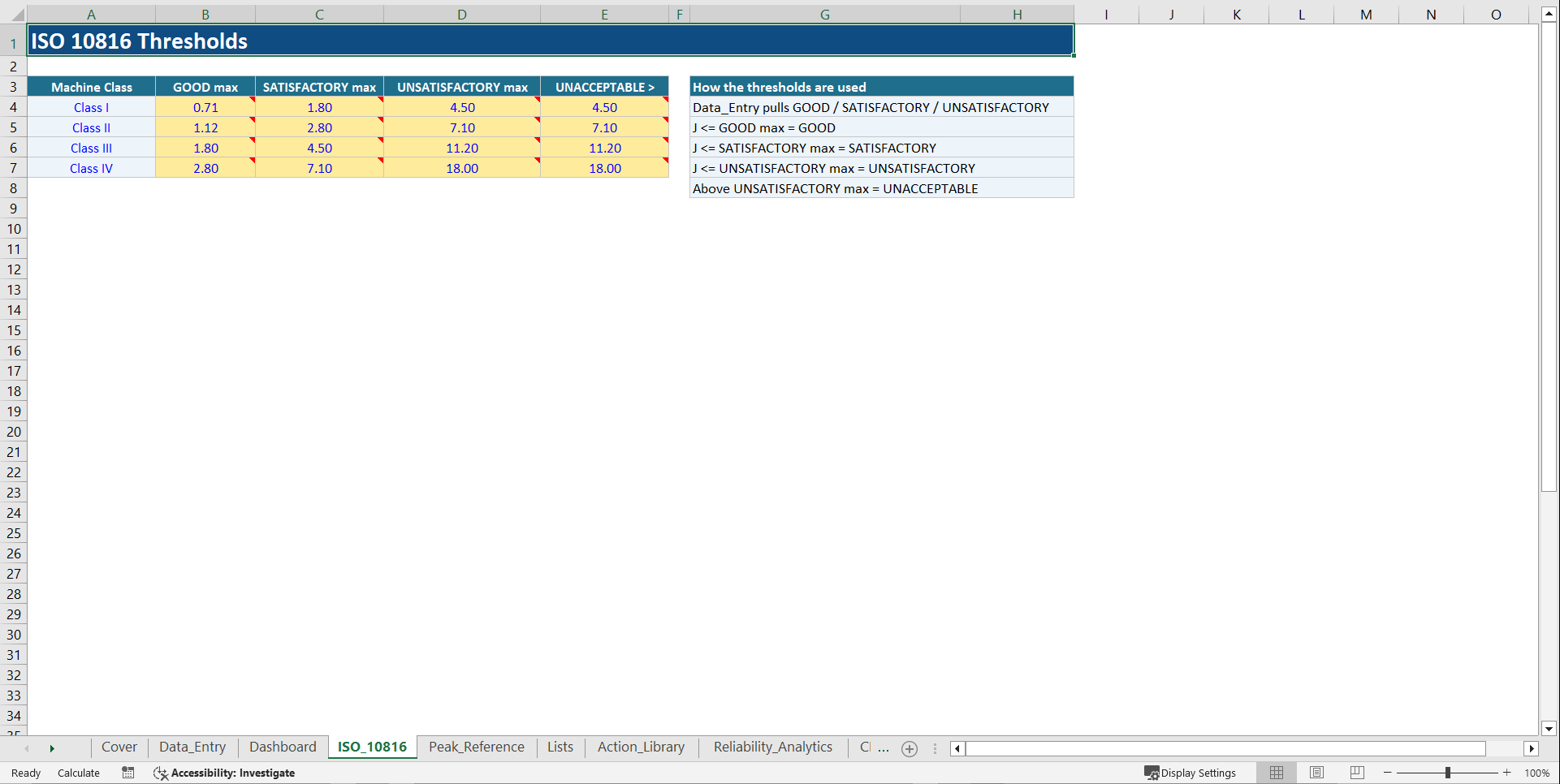

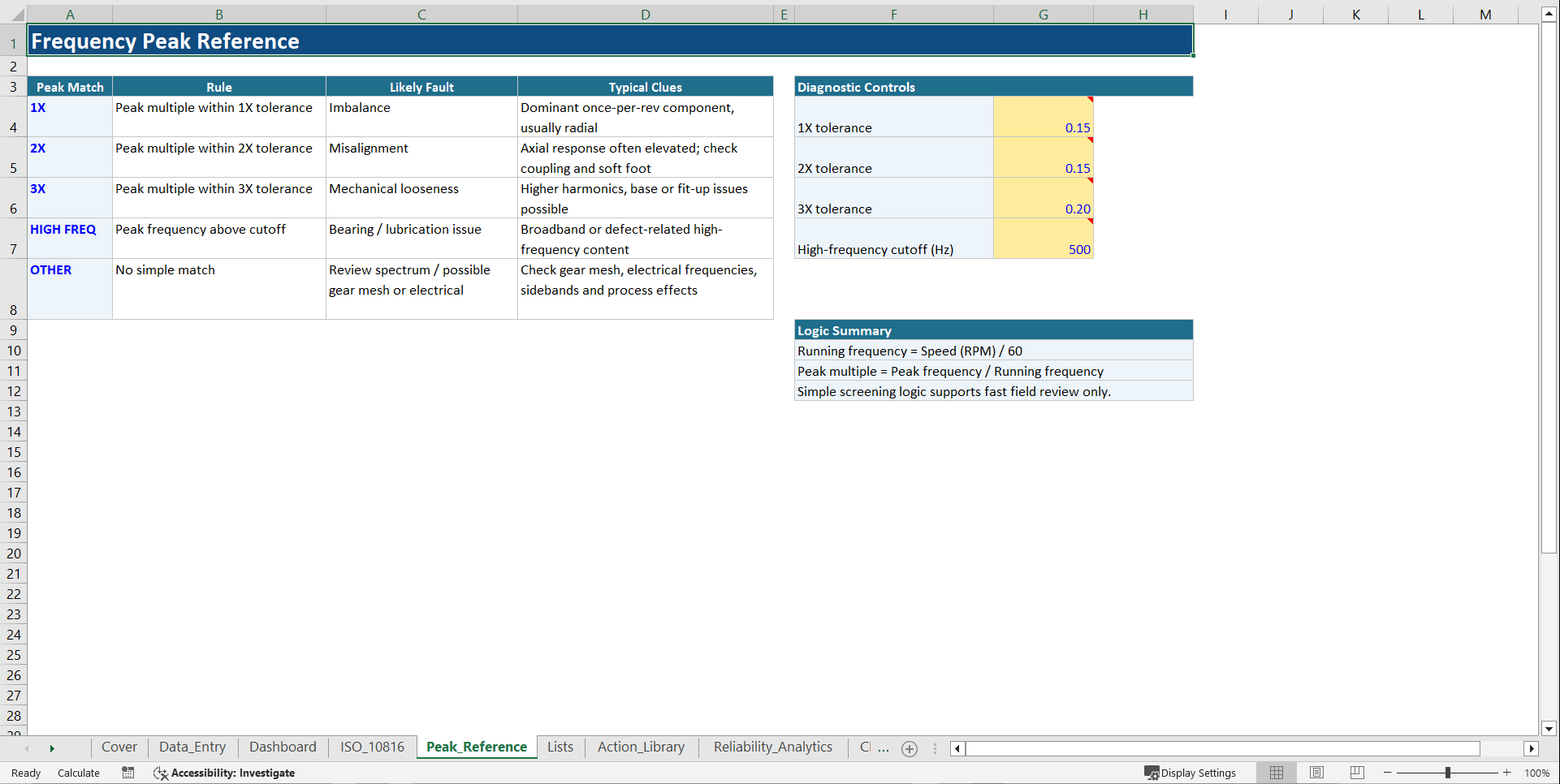

Unlike basic spreadsheets, this tool integrates fault diagnosis, severity scoring, and predictive analytics into a single platform. Technicians can log vibration readings quickly using structured data entry sheets, while engineers and managers gain access to advanced dashboards that highlight asset condition, risk levels, and potential failure trends. The system automatically evaluates vibration levels against ISO thresholds, identifies likely fault conditions (such as imbalance, misalignment, or bearing defects), and assigns risk scores based on Probability of Failure (PoF) and Consequence of Failure (CoF).

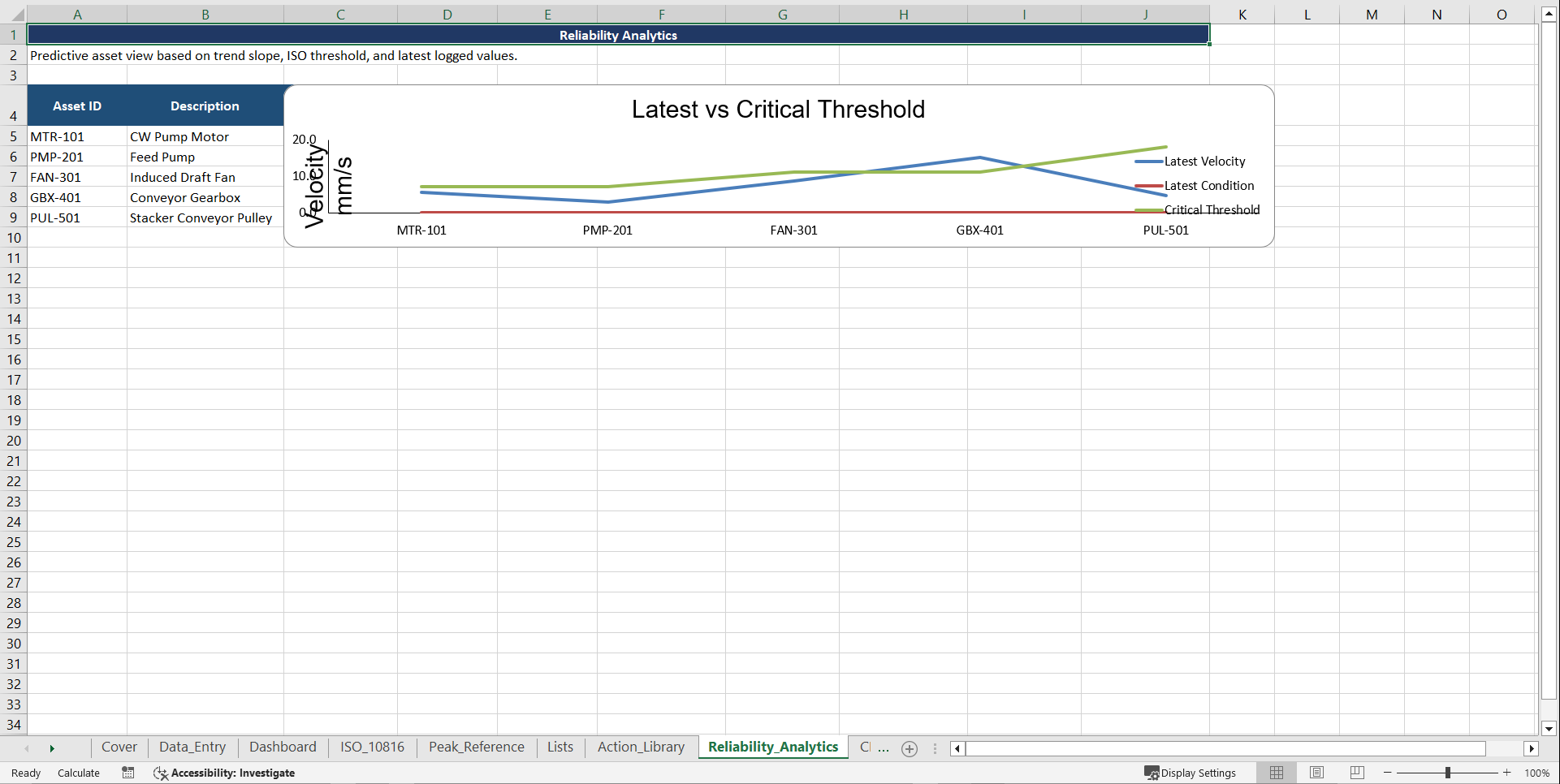

A key feature of this toolkit is its predictive capability. By analysing vibration trends over time, the system estimates the rate of deterioration and forecasts when equipment is likely to reach critical failure thresholds. This enables maintenance teams to plan interventions proactively, reducing unplanned downtime and extending asset life.

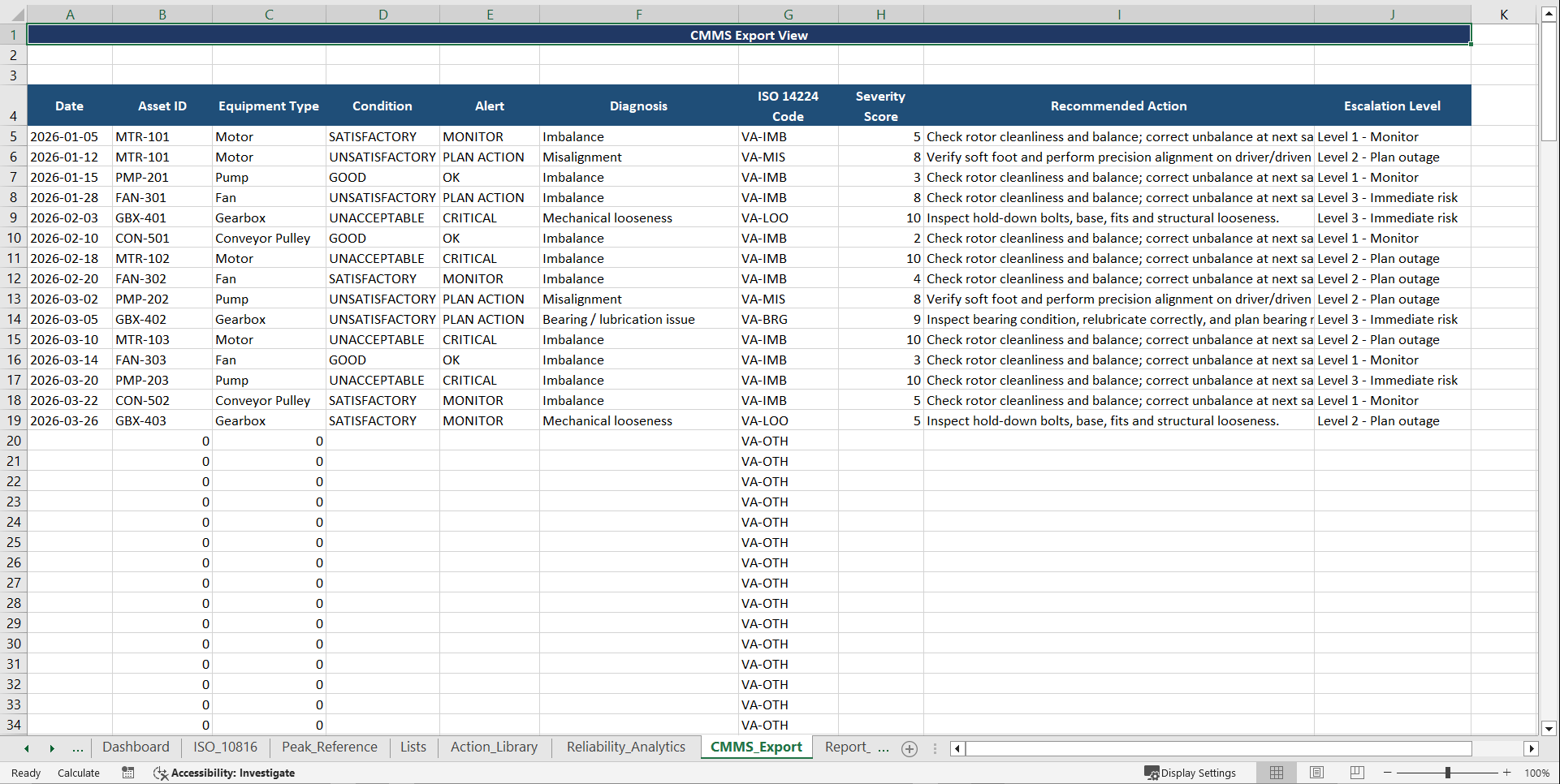

In addition, the tool includes a CMMS-ready export structure, allowing seamless integration with systems such as SAP or Maximo. This ensures that insights generated from vibration analysis can be directly incorporated into maintenance strategies and work order planning.
Whether used as a standalone diagnostic tool or as part of a broader reliability programme, the V3 Predictive System provides a powerful foundation for data-driven maintenance, risk reduction, and operational excellence. It is not just a spreadsheet—it is a structured reliability system designed to deliver measurable results in real industrial environments.
Got a question about the product? Email us at support@flevy.com or ask the author directly by using the "Ask the Author a Question" form. If you cannot view the preview above this document description, go here to view the large preview instead.
Source: Best Practices in Manufacturing Excel: Predictive Vibration Intelligence System Excel (XLSX) Spreadsheet, Virtuoso Trading
ABOUT THE AUTHOR
I am a Reliability Engineer with over 20 years of experience in bulk material handling systems across industries including ports, mining, cement, sugar, and fertilizer plants in Africa. My expertise focuses on eliminating repeat equipment failures in conveyors, rotating equipment, and mechanical drive systems.
With a background in resident engineering, I specialize in practical, field-driven
